Carbon Steel Explained: Types, Grades, Properties, Applications and Manufacturing Processes

Many buyers struggle with material selection because carbon steel covers a wide range of grades, properties, and performance levels. A wrong choice can lead to failures, delays, and unnecessary costs.

Carbon steel is an iron-carbon alloy containing up to about 2.1% carbon. Its performance depends mainly on carbon content, manufacturing methods, and heat treatment. Low carbon steel offers excellent formability, while high carbon steel provides greater hardness and wear resistance for demanding applications.

When customers ask me whether carbon steel is a good material, my answer is always the same: it depends on how the steel is made and treated. During my years in investment casting, I learned that the real value of carbon steel is not the material itself. The value comes from controlling chemistry, heat treatment, and manufacturing processes. Those factors determine whether a part bends easily, resists wear, or survives high-pressure service.

What Is Carbon Steel?

Choosing steel without understanding its composition often creates confusion. Many engineers assume all carbon steels behave similarly. That assumption can lead to poor material performance.

Carbon steel is a steel alloy made primarily from iron and carbon, with carbon acting as the main strengthening element. Increasing carbon content improves hardness and strength but reduces ductility, weldability, and formability.

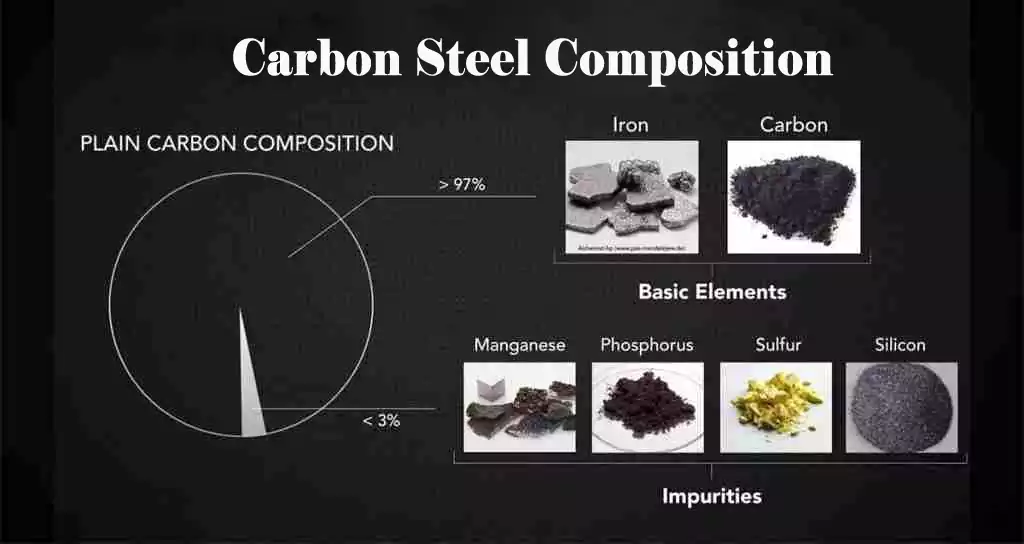

Understanding Carbon Steel Composition

Carbon steel contains iron as the base element. Carbon is added to improve strength and hardness. Small amounts of manganese, silicon, sulfur, and phosphorus may also be present.

The carbon percentage is the primary factor that controls performance.¹

Steel Type	Carbon Content	Typical Characteristics
Low Carbon Steel	0.05% - 0.25%	Soft, ductile, easy to weld
Medium Carbon Steel	0.25% - 0.60%	Balanced strength and toughness
High Carbon Steel	0.60% - 1.00%+	High hardness and wear resistance

I often explain this concept to customers using a simple rule. Low carbon steel is for forming. High carbon steel is for wear resistance. Alloy steel is for high pressure. This guideline solves many material selection questions before they become production problems.

Carbon steel remains one of the most widely used engineering materials because it provides an excellent balance of cost, strength, machinability, and availability. That is why it appears in everything from automotive parts and industrial machinery to construction equipment and investment cast components.

For engineers evaluating casting materials, understanding the differences between forged and cast grades is equally important. Many of the most commonly specified carbon steel casting materials are designed to deliver reliable mechanical properties while maintaining excellent castability.

Types, Grades and Properties of Carbon Steel?

Many sourcing managers compare steel grades only by price. That approach often overlooks critical performance differences that affect service life and maintenance costs.

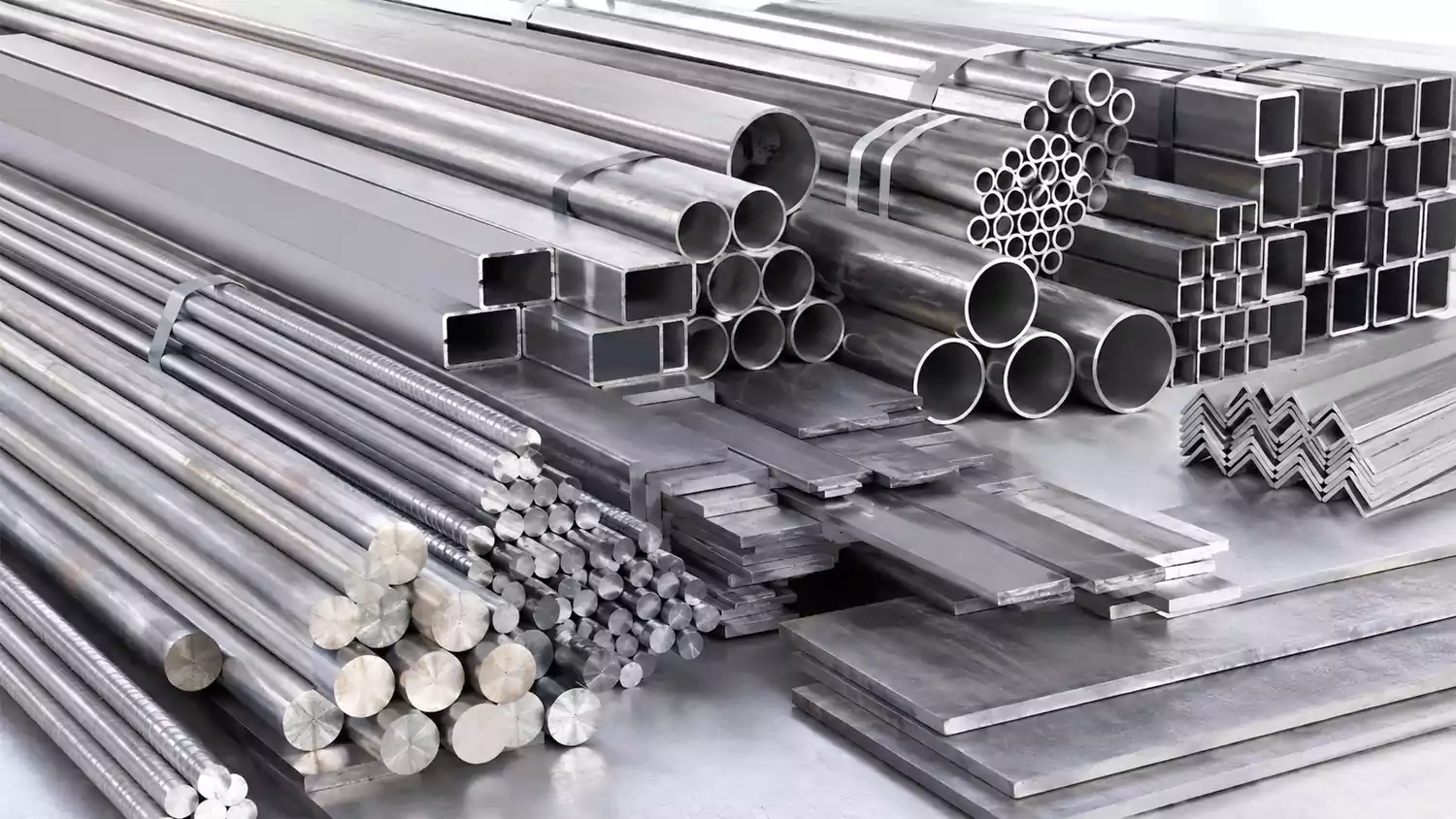

Carbon steel grades are classified mainly by carbon content and mechanical properties. Common grades such as ASTM A36, AISI 1018, AISI 1045, and AISI 1095 provide different levels of strength, hardness, machinability, weldability, and wear resistance.

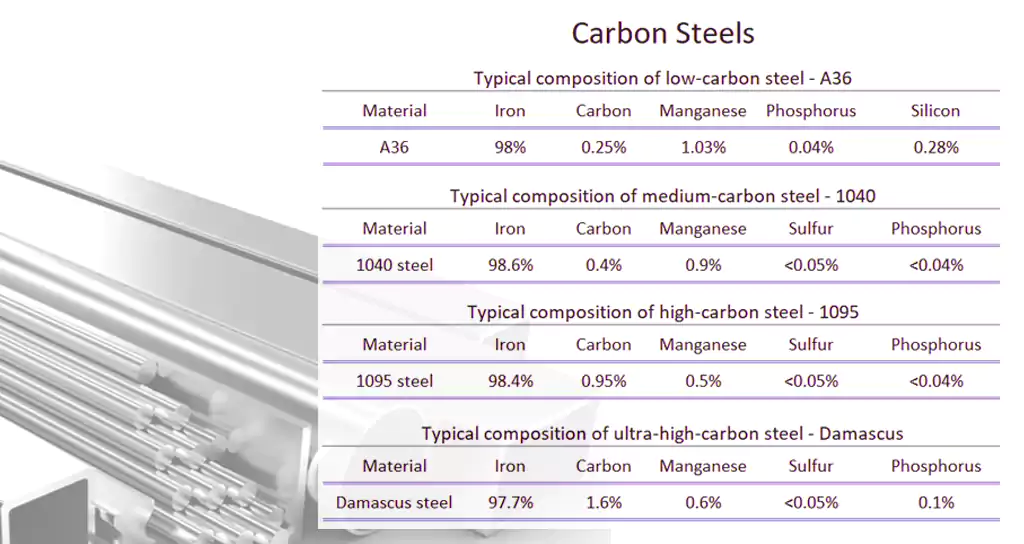

Common Carbon Steel Grades

The most widely used grades serve different engineering needs.

Grade	Carbon %	Tensile Strength (MPa)	Common Uses
AISI 1018	0.18%	440-540	Shafts, brackets, fasteners
ASTM A36	0.25% max	400-550	Structural components
AISI 1045	0.45%	565-700	Gears, axles, machinery parts
AISI 1095	0.95%	700+	Springs, blades, wear parts

Mechanical Property Trends

As carbon content rises:

• Hardness increases
• Tensile strength increases
• Wear resistance improves
• Weldability decreases
• Ductility decreases

I have seen customers replace expensive alloy materials with properly heat-treated medium carbon steel and achieve nearly identical performance. The key is understanding the actual loading conditions instead of selecting materials based only on maximum strength values.

For aerospace and energy sector buyers like Michael, material certification becomes equally important. Mechanical properties must be supported by traceable heat treatment records, chemical analysis reports, and process documentation². A grade is only as reliable as the manufacturing controls behind it.

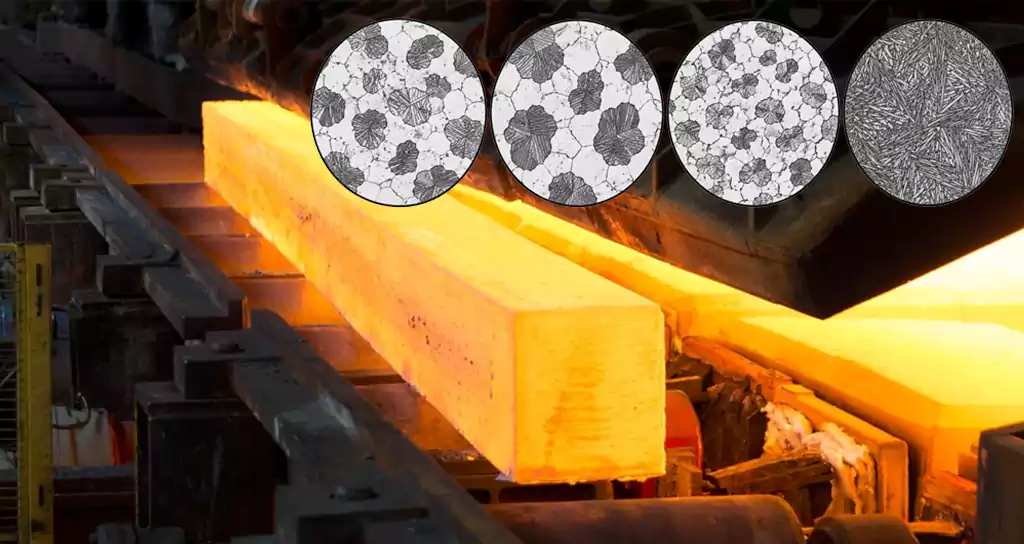

How Is Carbon Steel Manufactured and Heat Treated?

Many performance problems originate during production rather than material selection. Even the correct steel grade can fail if processing is poorly controlled.

Carbon steel is manufactured through melting, refining, casting, forming, and heat treatment processes. Heat treatments such as annealing, normalizing, quenching, and tempering are used to achieve specific combinations of strength, hardness, toughness, and machinability.

Manufacturing Process Overview

A typical production route includes:

1. Raw material charging
2. Steel melting
3. Chemical composition adjustment
4. Casting or continuous casting
5. Hot rolling or forging
6. Heat treatment
7. Machining and finishing

Heat Treatment Effects³

Process	Purpose	Result
Annealing	Reduce hardness	Improved machinability
Normalizing	Refine grain structure	Better toughness
Quenching	Increase hardness	Higher strength
Tempering	Reduce brittleness	Balanced performance

Case Study: Investment Cast Valve Body

Several years ago, I worked with a senior foundry engineer who had over 25 years of casting experience. His team produced a custom carbon steel valve body for a high-pressure energy application.

Parameter	Value
Material	ASTM A216 WCB Carbon Steel4
Casting Process	Investment Casting
Weight	18.6 kg
Overall Dimensions	245 × 180 × 135 mm
Operating Pressure	8.5 MPa
Heat Treatment	Normalize + Temper
Hardness	187 HB
Yield Strength	275 MPa
Tensile Strength	485 MPa
Inspection Standard	ASTM E446 Radiography
Machining Allowance	2.5 mm

The customer initially requested an alloy steel solution. The foundry team reviewed the operating conditions and determined that normalized and tempered WCB carbon steel would satisfy all requirements. Testing confirmed compliance with strength, toughness, and pressure containment targets. The customer reduced material costs by approximately 18% while maintaining required performance.

This project reinforced a lesson I have seen many times. Material selection works best when chemistry, casting quality, and heat treatment are considered together rather than independently.

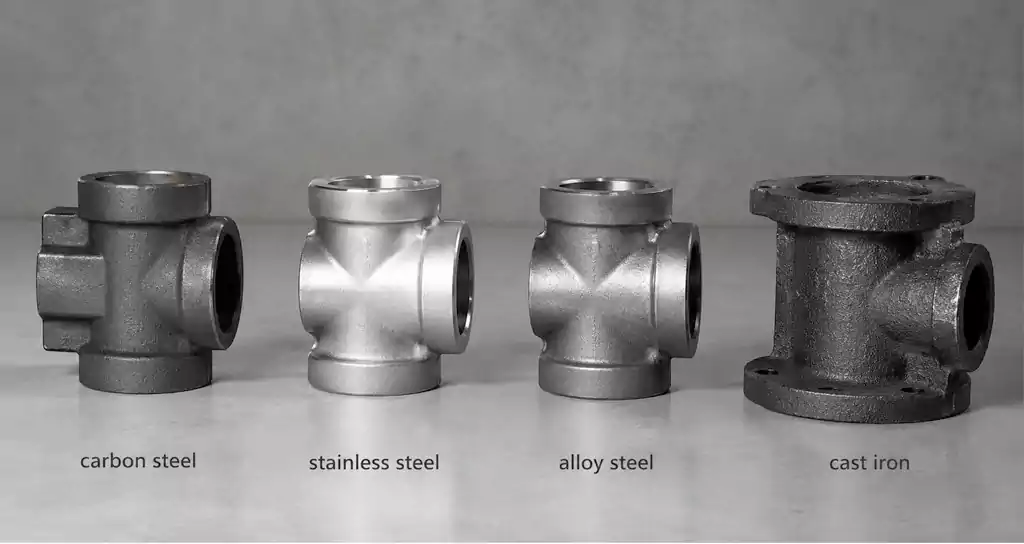

Carbon Steel vs Stainless Steel, Alloy Steel and Cast Iron?

Material selection becomes difficult when several metals appear capable of meeting the same specification. Many buyers focus only on strength and overlook environmental conditions.

Carbon steel differs from stainless steel, alloy steel, and cast iron in corrosion resistance, alloy content, strength, toughness, and cost. Carbon steel offers the best balance of performance and affordability for many industrial applications.

Material Comparison

Property	Carbon Steel	Stainless Steel	Alloy Steel	Cast Iron
Corrosion Resistance	Low	Excellent	Moderate	Low
Strength	Good	Good	Excellent	Moderate
Toughness	Good	Good	Excellent	Low
Cost	Low	High	Medium-High	Low
Weldability	Good	Moderate	Moderate	Poor

When To Choose Each Material

Carbon Steel

• Structural components
• General machinery
• Pressure-containing castings
• Cost-sensitive projects

Stainless Steel

• Corrosive environments
• Food processing equipment
• Marine applications

Alloy Steel

• High-pressure systems
• Elevated temperatures
• Heavy-duty machinery

Cast Iron

• Machine bases
• Engine blocks
• Vibration damping applications

I often see engineers specify stainless steel simply because corrosion resistance sounds safer. Yet many indoor industrial applications operate successfully with coated carbon steel at a fraction of the cost. Understanding the service environment usually reveals the most economical choice.

What Are the Main Applications and How Should You Select Carbon Steel?

Selecting the wrong grade can increase manufacturing costs or reduce component life. The challenge is matching material properties to actual operating conditions.

Carbon steel is widely used in construction, automotive, energy, agriculture, and industrial machinery. Material selection should consider strength requirements, wear conditions, corrosion exposure, manufacturing methods, certification needs, and overall project cost.

Common Applications

Industry	Typical Components
Construction	Beams, columns, plates
Automotive	Shafts, gears, brackets
Energy	Valves, flanges, fittings
Manufacturing	Machine frames, tooling
Agriculture	Wear parts, housings

Material Selection Checklist

Before recommending a carbon steel grade, I normally review:

1. Required strength level
2. Wear resistance requirements
3. Corrosion exposure
4. Welding requirements
5. Heat treatment capability
6. Machining requirements
7. Certification requirements
8. Budget constraints

For sourcing and quality professionals, supplier capability is often as important as material choice. A qualified foundry should provide full traceability, documented process controls, inspection records, and responsive technical support. Those factors reduce risk long before production begins.

Conclusion

Carbon steel remains one of the most practical and versatile engineering materials available today. Its success does not come from carbon content alone. It comes from selecting the right grade, applying the right manufacturing process, and controlling heat treatment to match the demands of the application. When those factors work together, carbon steel delivers reliable performance, predictable quality, and outstanding value across a wide range of industries.
