Struggling to get intricate stainless steel parts made with precision and strength? It's tough finding a process that handles complex shapes and offers great corrosion resistance. I know how frustrating that can be for designers like you.
Simply put, stainless steel investment casting uses a wax pattern to create a ceramic mold. Molten stainless steel is poured into this mold after the wax is melted out. This creates highly detailed, strong, corrosion-resistant metal parts perfect for complex designs.
Now, understanding the basics is one thing, but knowing how it compares to other methods and fits into your design process is key. As someone who built a foundry from the ground up, I've seen firsthand how choosing the right process impacts the final product. Let's explore this method further so you can make informed decisions for your projects.
What exactly is meant by investment casting?
Need metal parts with fine details and smooth surfaces? Achieving this with traditional methods can be costly or impossible. You might worry about compromises in your design's complexity.
Investment casting, also known as the lost-wax process, creates parts by pouring molten metal into a ceramic mold. This mold is made using a wax replica (pattern) of the part, which is then melted away or "lost" before pouring.
Let's dive deeper into this fascinating process. I remember when I first started in the foundry business, the precision achievable with investment casting truly impressed me. It's a technique that's been refined over centuries, believe it or not, originally used for jewelry and statues. Today, it's a cornerstone for many industries needing high-performance components.
How Investment Casting Works (The Basics)
The core idea is creating a disposable pattern and then building a shell around it.
- Pattern Creation: First, we make an exact replica of the part, usually out of wax. This is often done by injecting wax into a metal die. Think of it like making a detailed wax candle in the shape of your part.
- Assembly: If you need multiple parts, these wax patterns are attached to a central wax stick, called a sprue, creating a 'tree'.
- Shell Building: This wax tree is then dipped repeatedly into a ceramic slurry and coated with sand-like materials (stucco). This builds up a hard ceramic shell1 around the wax patterns.
- Dewaxing: Once the shell is thick and dry enough, it's heated rapidly (often in an autoclave). This melts and drains the wax out, leaving a hollow cavity inside the ceramic shell – hence the name "lost-wax".
- Pouring: The hollow shell is then fired at high temperatures to strengthen it. After that, molten metal (like stainless steel, aluminum, bronze, etc.) is poured into the cavity.
- Cooling & Removal: After the metal cools and solidifies, the ceramic shell is broken away, usually through vibration or blasting.
- Finishing: The individual parts are cut from the sprue, and any minor finishing touches like grinding or sanding are done.
Key Advantages
- Complexity: Allows for intricate shapes and internal features that are difficult or impossible with other methods.
- Accuracy: Produces parts with excellent dimensional accuracy2 and tight tolerances, minimizing machining needs.
- Surface Finish: Delivers a very smooth surface finish as-cast.
- Material Choice: Works with a wide variety of metals and alloys.
Understanding this general process helps appreciate the specifics when we talk about stainless steel.What's the specific process for stainless steel investment casting?
Working with stainless steel presents unique challenges, right? Its high melting point and specific properties mean you can't just use any casting method and expect great results.
The stainless steel investment casting process follows the lost-wax steps but uses specialized refractory materials for the shell to withstand high temperatures. Precise control over melting and pouring stainless steel alloys is crucial for achieving the desired properties and part integrity.
Having handled countless stainless steel casting projects at Allied Metal, I can tell you the details matter significantly. Stainless steel isn't just one material; it's a family of alloys (like 304, 316, 17-4 PH) each with different melting points and flow characteristics. Adapting the investment casting process for these materials requires specific expertise.
Step-by-Step Stainless Steel Investment Casting
Let's break down the process with stainless steel in mind:
- Wax Pattern Injection: Just like the general process, we start by injecting wax into a precise mold (die) to create the pattern. For stainless steel parts needing tight tolerances, the quality of this initial pattern is paramount. We have to account for both wax shrinkage and the specific shrinkage rate of the chosen stainless steel alloy.
- Pattern Assembly: Patterns are attached to a wax gating system (sprue, runners, gates) designed to ensure smooth metal flow and proper feeding during solidification, which is critical for denser metals like stainless steel.
- Ceramic Shell Building: This is where things get specific. The wax assembly is dipped into slurries containing fine refractory materials like zircon and fused silica. These materials are chosen for their ability to withstand the high melting temperature of stainless steel (often above 1400°C or 2550°F) without reacting with the metal or degrading. Multiple layers are built up to create a robust shell.
- Dewaxing: The wax is removed, typically using a high-pressure steam autoclave. This melts the wax quickly before it can expand and crack the relatively fragile "green" ceramic shell.
- Shell Firing: The hollow ceramic shell is fired in a high-temperature furnace. This burns off any residual wax, cures the ceramic binder, and develops the shell's high-temperature strength needed to contain molten stainless steel.

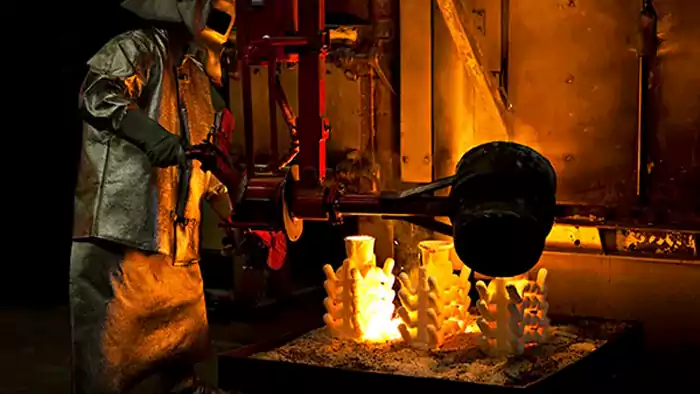

- Melting & Pouring: The selected stainless steel alloy is melted in an induction furnace. Chemistry is tightly controlled. The molten steel is then carefully poured into the preheated ceramic shells. Preheating the shell helps the metal flow into thin sections and reduces thermal shock.
- Solidification & Cooling: The filled shells are allowed to cool at a controlled rate.
- Shell Removal (Knockout): Once cool, the ceramic shell is broken away using methods like vibration hammers or high-pressure water jets.
- Cut-off & Finishing: Parts are cut from the gating system. Gate marks are ground smooth. Further finishing steps like sandblasting (for a uniform matte finish), pickling/passivation (to enhance corrosion resistance), heat treatment (to achieve specific mechanical properties), or machining may be performed based on the part requirements.
This careful, multi-step process is why stainless steel investment casting delivers such high-quality, complex parts.Which casting methods are suitable for stainless steel?
Your project needs stainless steel parts, but is investment casting always the answer? Choosing the wrong method can lead to higher costs, lower quality, or parts that don't meet spec.
Investment casting is excellent for complex, high-precision stainless steel parts. However, sand casting is often used for larger, less intricate components, while centrifugal casting works well for symmetrical shapes like tubes. Die casting is generally not suitable for steels.
In my experience, matching the casting method to the part's requirements (size, complexity, quantity, tolerances) is crucial, especially with demanding materials like stainless steel. Let's compare the most common options suitable for stainless steel.
Comparing Casting Methods for Stainless Steel
| Feature | Investment Casting | Sand Casting | Centrifugal Casting | Die Casting |
|---|---|---|---|---|
| Complexity | Very High (Intricate shapes, thin walls) | Low to Medium | Medium (Symmetrical shapes) | High (but limited for steel) |
| Size | Small to Medium | Medium to Very Large | Medium to Large (cylindrical) | Small to Medium |
| Tolerance | Excellent | Fair to Poor | Good | Very Good |
| Surface Finish | Very Good | Poor to Fair | Good | Excellent |
| Tooling Cost | Medium to High | Low | Medium | Very High |
| Part Cost | Medium to High | Low (for simple shapes) | Medium | Low (in very high volumes) |
| Volume | Low to High | Low to Medium | Low to Medium | Very High |
| Suitability | Excellent | Good (for simpler/larger parts) | Good (for specific shapes) | Generally Not Suitable |
Deeper Dive into Suitability
- Investment Casting: This is often my go-to recommendation for stainless steel when complexity, tight tolerances, and a good surface finish are needed. Think of pump impellers, valve bodies, medical instruments, or intricate hardware. The tooling cost is moderate, making it viable for low-to-high volume production.
- Sand Casting: If you need a large, relatively simple stainless steel part (like a large pump housing or a structural component) where fine details and surface finish aren't critical, sand casting is a cost-effective option. Tooling is cheap, but machining is often required to achieve final dimensions.
- Centrifugal Casting: This is a specialized process primarily used for creating cylindrical or tubular stainless steel parts, like pipes, tubes, or rings. It produces a dense, high-integrity casting.
- Die Casting: While excellent for aluminum and zinc, die casting is rarely used for stainless steel. The extremely high melting temperature of steel drastically shortens the lifespan of the steel dies, making the process prohibitively expensive. Specialized variants exist but are uncommon.
So, while other methods exist, investment casting holds a sweet spot for producing the complex, high-performance stainless steel components many designers like Jacky require.How does forging compare to investment casting for stainless steel?
Need a strong stainless steel part? You might be weighing forging against casting. Choosing incorrectly could compromise either the part's strength or its geometric complexity.
Forging shapes solid metal using compressive force, resulting in a very strong, aligned grain structure. Investment casting uses molten metal poured into a mold, allowing for more complex shapes but typically having lower fatigue strength than forgings.
I often get asked about forging versus casting. They are fundamentally different ways to shape metal, each with distinct advantages, particularly when dealing with robust materials like stainless steel. Let's break down those differences.
Forging vs. Investment Casting for Stainless Steel
| Feature | Forging | Investment Casting |
|---|---|---|
| Process | Shaping solid metal via force (hammer/press) | Pouring molten metal into a mold |
| Complexity | Limited (Simpler shapes generally) | High (Complex, near-net shapes possible) |
| Grain Structure | Aligned, refined (directional strength) | Equiaxed (uniform, non-directional) |
| Strength | Generally Higher (Tensile, Fatigue) | Good, but typically lower than forging |
| Ductility | Generally Higher | Lower |
| Tolerances | Wider (Often requires machining) | Tighter (Near-net shape) |
| Surface Finish | Fair to Good | Very Good |
| Tooling Cost | High (Dies required) | Medium to High (Wax mold + shell) |
| Part Cost | Medium to High | Medium to High |
| Material Waste | Higher (Flash, machining allowance) | Lower (Near-net shape) |
| Lead Time | Can be longer (Die making) | Can be moderate |
Key Considerations
- Strength is Paramount: If the absolute highest tensile and fatigue strength is critical, especially under high stress or impact loads, forging is often preferred for stainless steel. The forging process refines the metal's grain structure and eliminates internal porosity. Think critical engine components or high-pressure fittings.
- Complexity Wins: If the part has intricate details, internal passageways, or a complex overall shape that would be difficult or impossible to forge and would require extensive machining, investment casting is the better choice. It produces near-net shapes, minimizing post-processing. Think complex valve bodies, turbine blades, or surgical tools.
- Cost and Volume: Tooling for forging (dies) is usually more expensive than investment casting tooling. However, for very high volumes of simpler shapes, forging might become more cost-effective per part. Investment casting offers more flexibility for lower to medium volumes and design changes.
- Machining: Forged parts almost always require more machining to achieve final dimensions and surface finish compared to investment castings.
In essence, choose forging for ultimate strength in simpler shapes, and investment casting for complexity and near-net shape accuracy in stainless steel.What's the difference between investment casting and metal injection molding (MIM)?
Need small, intricate metal parts in high volumes? You might hear about both Investment Casting and MIM. Understanding their differences is key to avoiding costly tooling or process limitations.
Metal Injection Molding (MIM) uses fine metal powder mixed with a binder, injection molded like plastic, then sintered to density. Investment Casting uses molten metal poured into a ceramic shell made from a wax pattern. MIM excels at very small, complex parts in high volumes.
Both MIM and investment casting produce complex metal parts, including stainless steel ones, but they operate quite differently and suit different applications. As a foundry owner, I see where each process shines. Let's compare them side-by-side.
Investment Casting vs. Metal Injection Molding (MIM)
| Feature | Investment Casting | Metal Injection Molding (MIM) |
|---|---|---|
| Starting Material | Molten Metal (Ingots) | Fine Metal Powder + Binder |
| Forming Process | Pouring into ceramic shell | Injection molding into steel die |
| Secondary Process | Shell removal, finishing | Debinding (removing binder), Sintering (heating) |
| Complexity | High | Very High (especially small features) |
| Size | Small to Large (grams to >100 kg) | Typically Small (< 100 grams usually) |
| Wall Thickness | Typically > 1.5 mm | Can achieve thinner walls (< 1 mm possible) |
| Tolerances | Good to Very Good | Excellent |
| Surface Finish | Very Good | Excellent |
| Mechanical Props. | Cast structure (Good) | Wrought-like structure (Very Good, near 100% dense) |
| Material Options | Wide range of castable alloys | Wide range, requires suitable fine powders |
| Tooling Cost | Medium to High | Very High (Complex steel molds) |
| Part Cost | Medium to High (lower volumes) | Low (only in very high volumes) |
| Volume | Low to High | Typically High to Very High (>10,000 parts/year) |
| Lead Time | Moderate | Longer (Tooling, process development) |
Key Differences & Applications
- Process: Investment casting is a foundry process using molten metal. MIM is closer to plastic injection molding initially, followed by powder metallurgy steps (debinding and sintering).
- Size & Volume: MIM is ideal for small (often fitting in your palm), highly complex parts needed in very large quantities (tens of thousands to millions). Think watch cases, orthodontic brackets, firearm components, laptop hinges. The high tooling cost is amortized over the large volume.
- Investment Casting Versatility: Investment casting handles a much broader range of part sizes, from small intricate pieces to much larger components. It's economically viable for lower volumes compared to MIM.
- Properties: Sintered MIM parts often achieve properties very close to wrought materials due to near-full density. Investment castings have typical cast properties.
- Stainless Steel: Both processes handle stainless steel well (common MIM materials include 316L, 17-4PH).
So, if you need extremely small, complex stainless steel parts in very high volumes, MIM is a strong contender. For broader size ranges, lower-to-medium volumes, or slightly less intricate designs, stainless steel investment casting remains a highly versatile and effective choice.Conclusion
Stainless steel investment casting is a powerful method for creating complex, precise, and durable metal parts. It offers great design freedom and excellent material properties for demanding applications.
