Precision Shaft & Rotating Parts Machining Services
High-tolerance rotating components for demanding industrial applications — from miniature medical shafts to heavy-duty aerospace spindles. Allied Metal delivers end-to-end solutions from investment casting to machining and finishing.
Materials We Work With
What Shafts & Rotational Parts Can We Make for You?

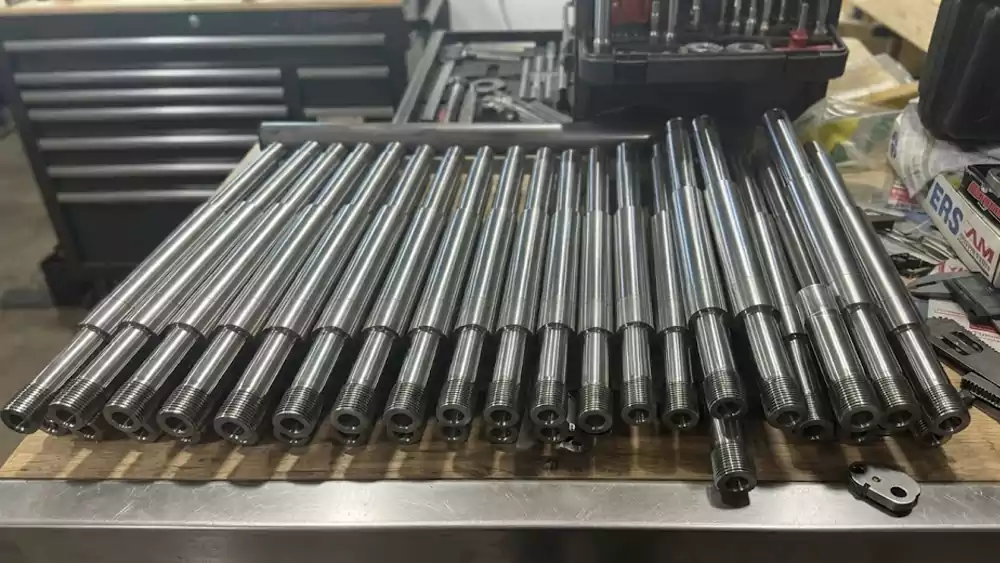

- ⚙️ Drive Shafts

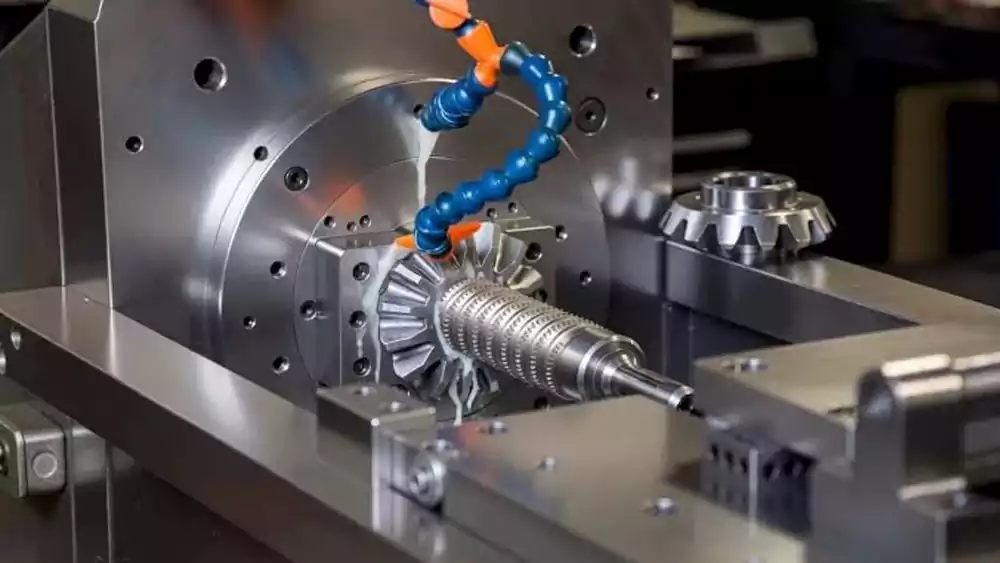

- Spline Shafts / Rectangular Spline

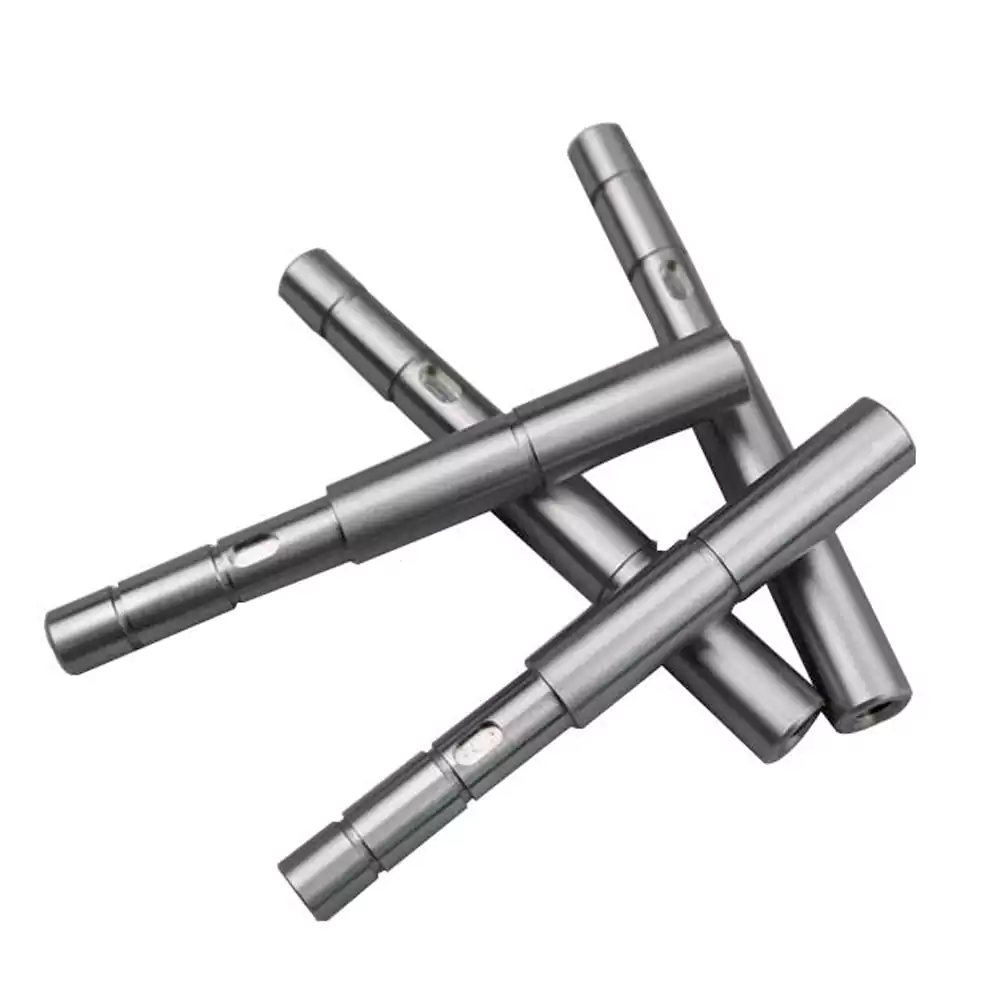

- Stepped Shafts / Hollow Shafts

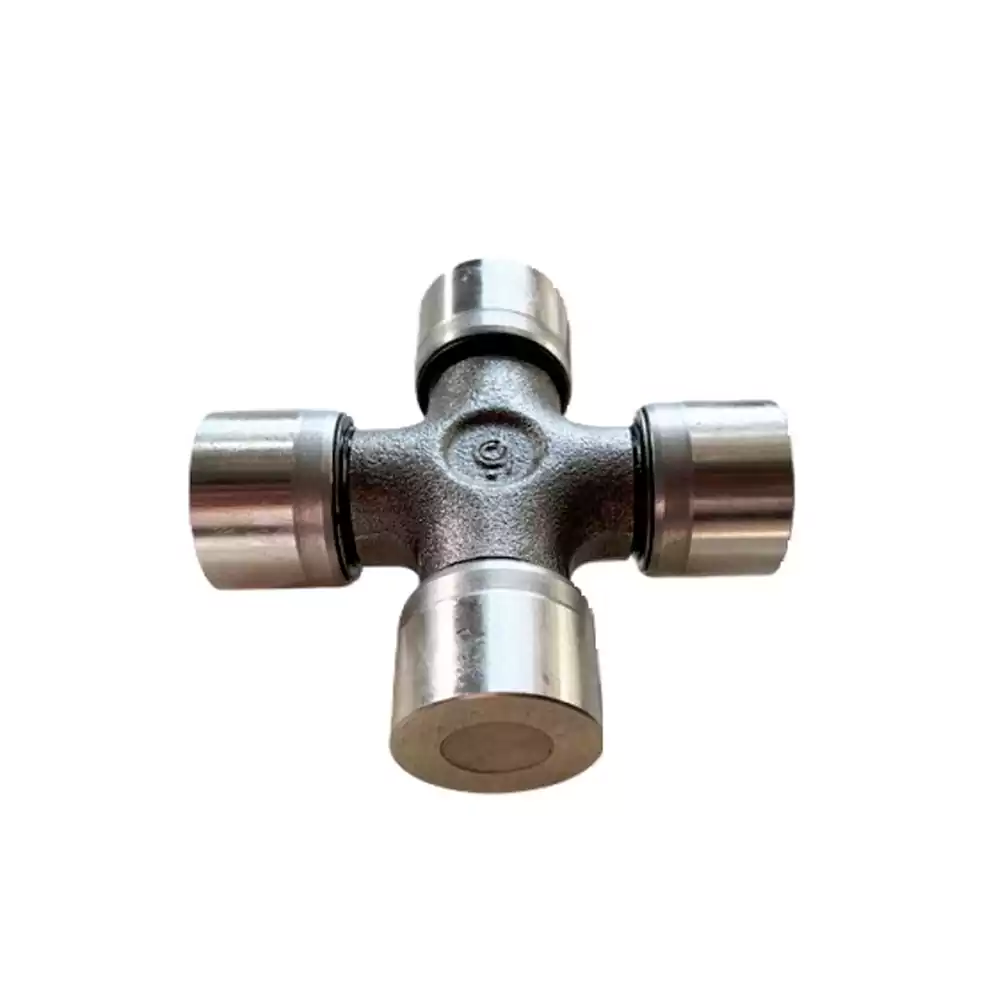

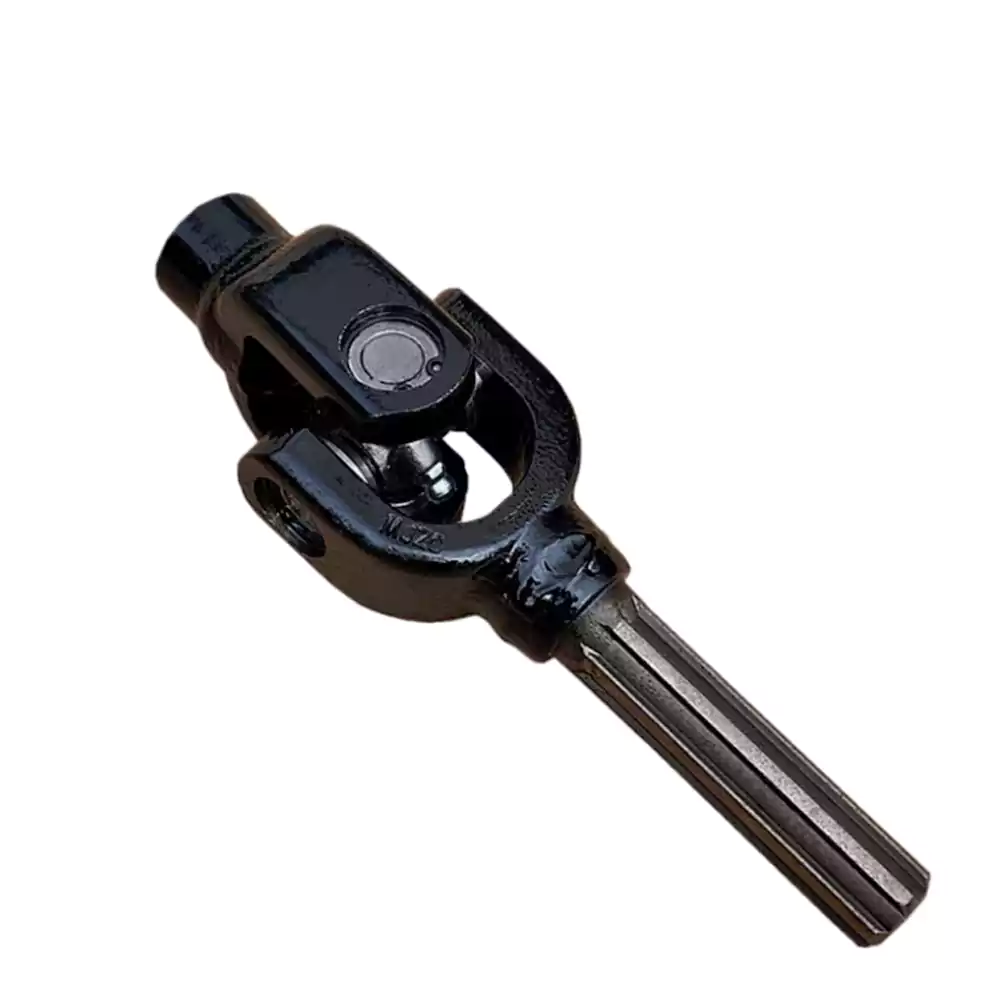

- Universal Joint Yokes
- Worm Shafts / Lead Screws
- Differential Shafts
- 🌀 Rotors & Rotating Bodies
- Motor Rotor Shafts
- Turbine Rotors / Impeller Shafts

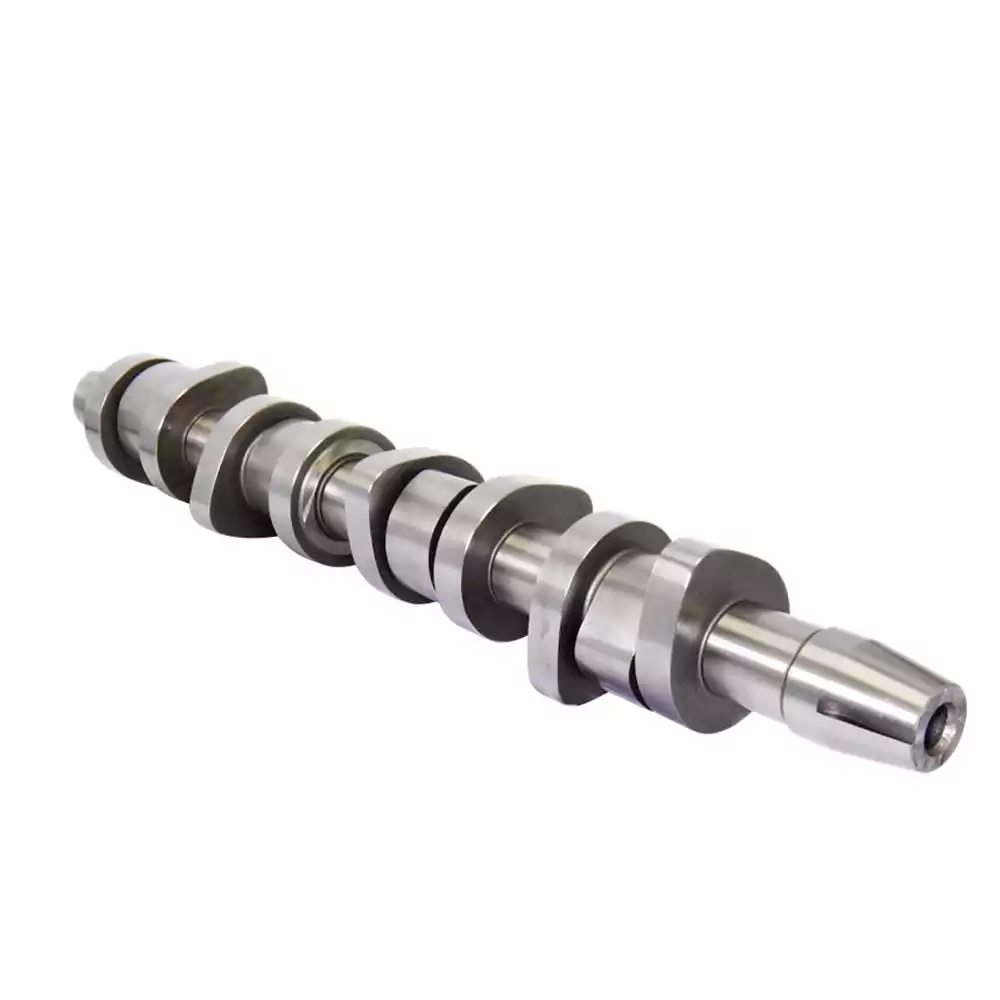

- Camshafts / Crankshafts
- Cycloidal Rotors
- Compressor Eccentric Shafts
- 🔩 Precision Connectors

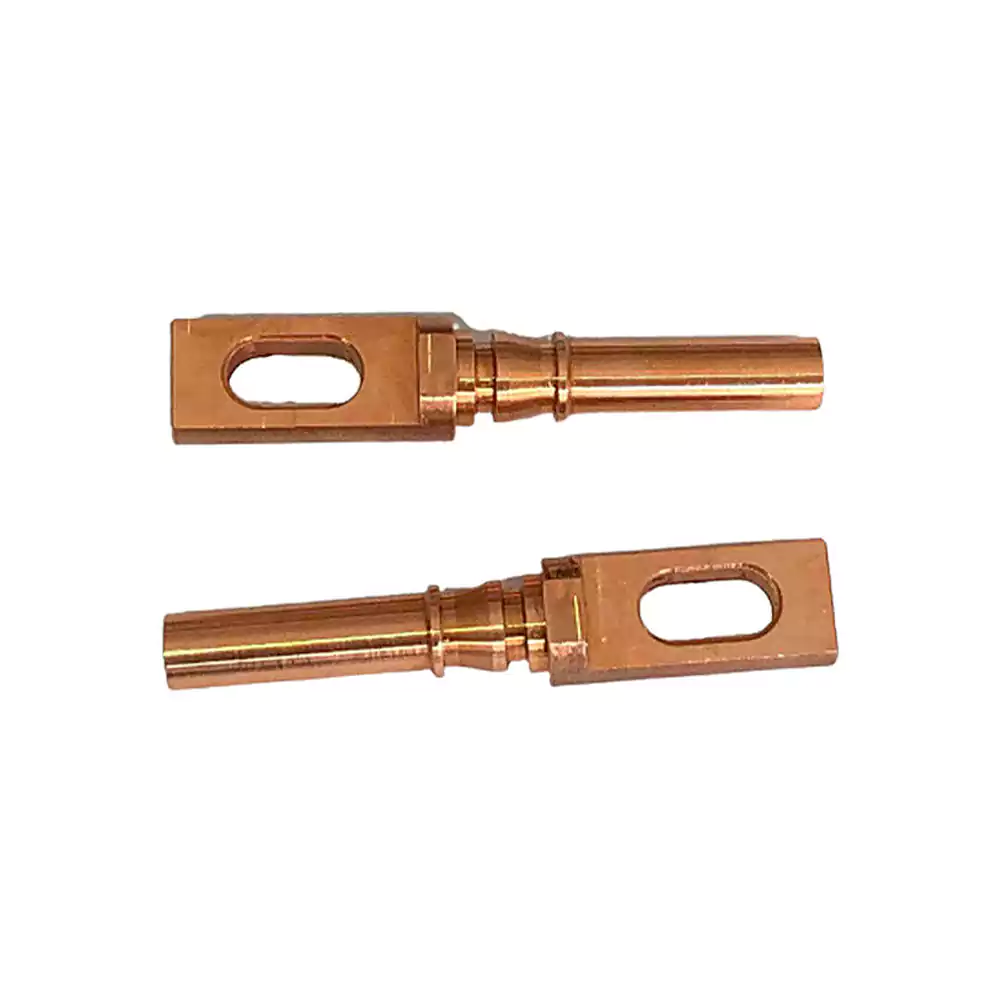

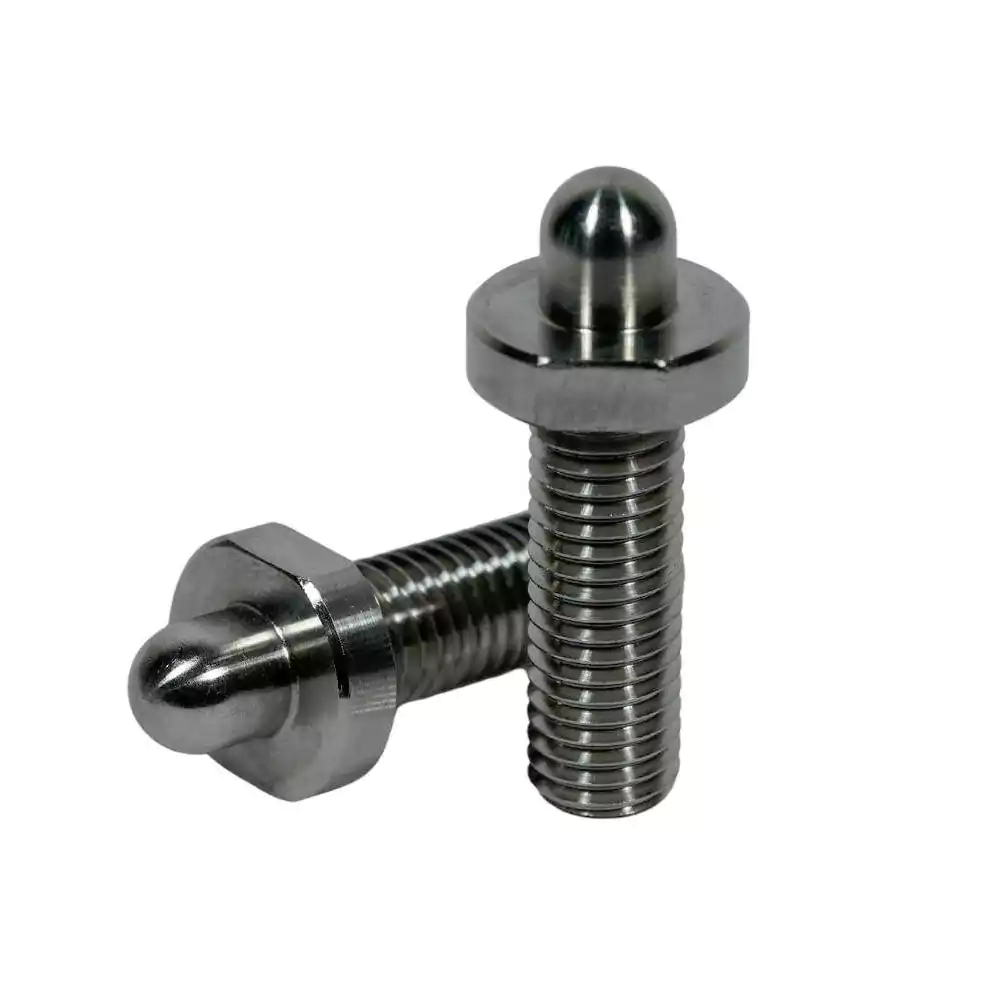

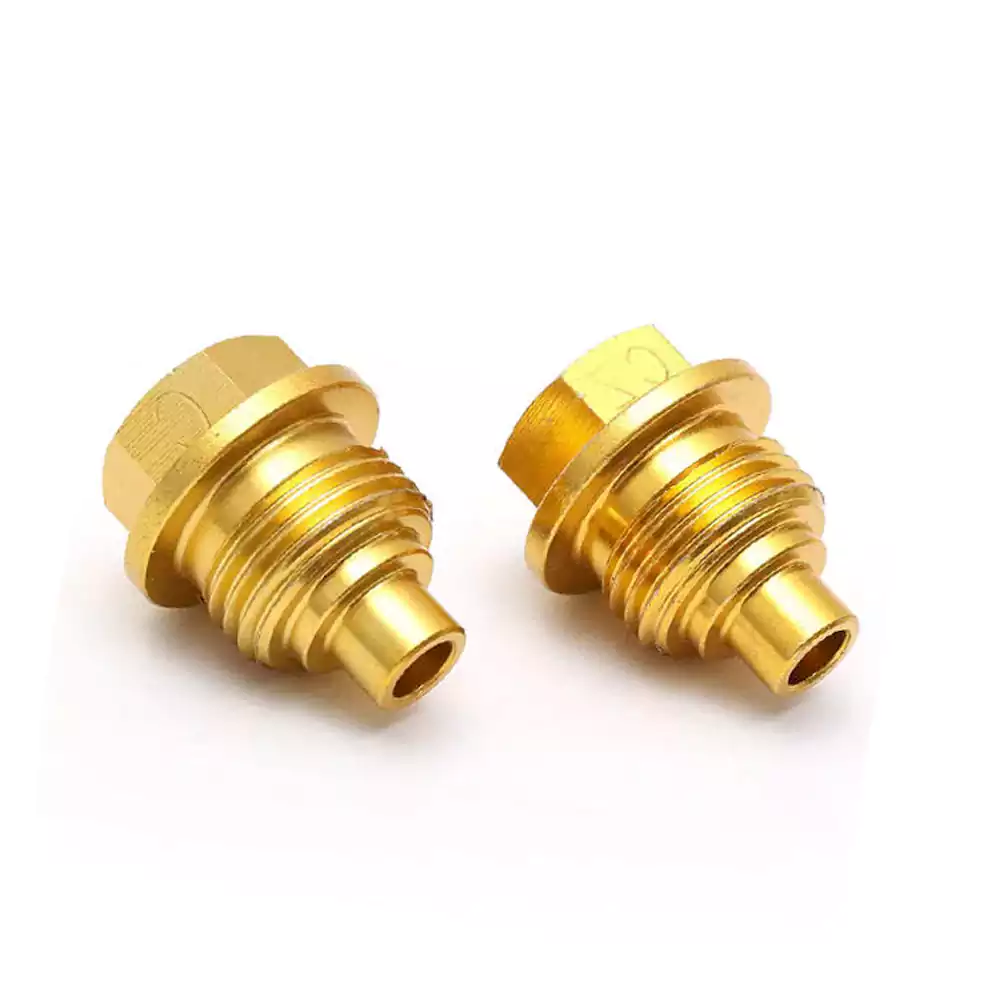

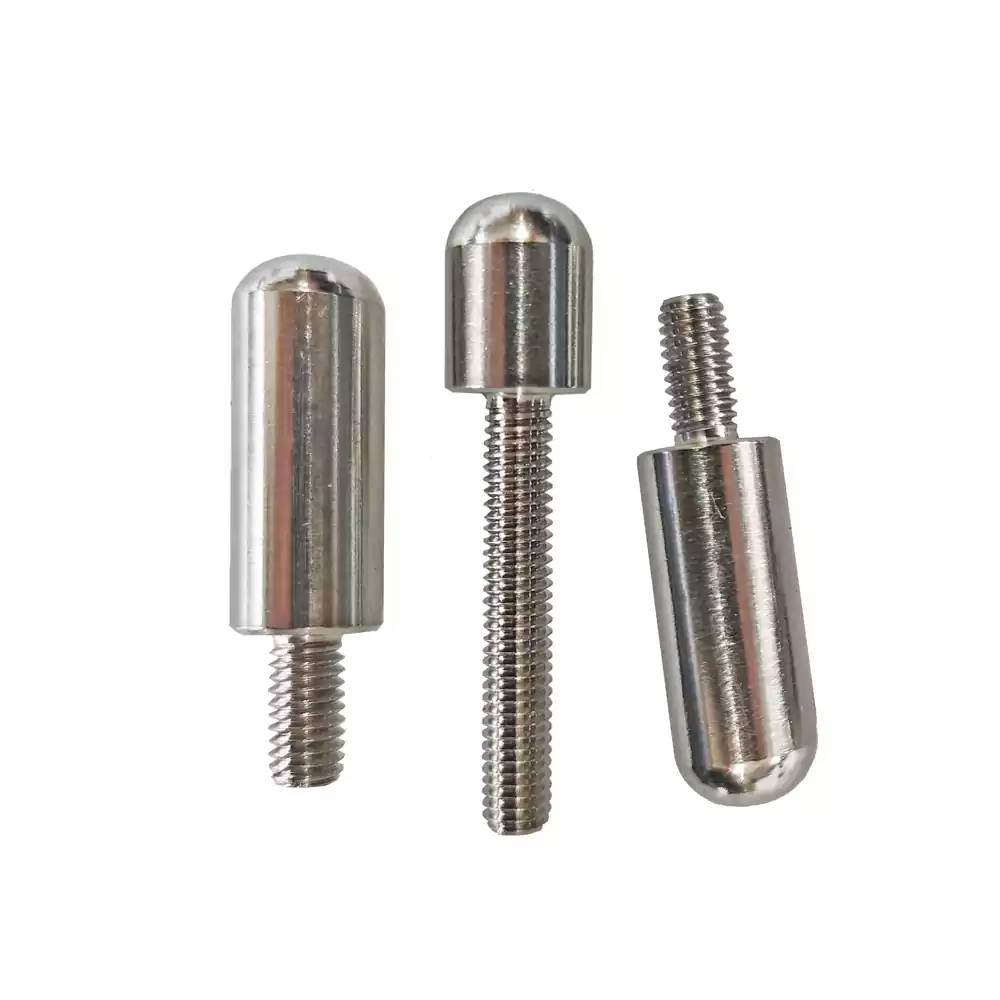

- Pins / Dowel Pins
- Hinge Pins / Pivot Shafts
- Eccentric Shafts / Adjustment Shafts

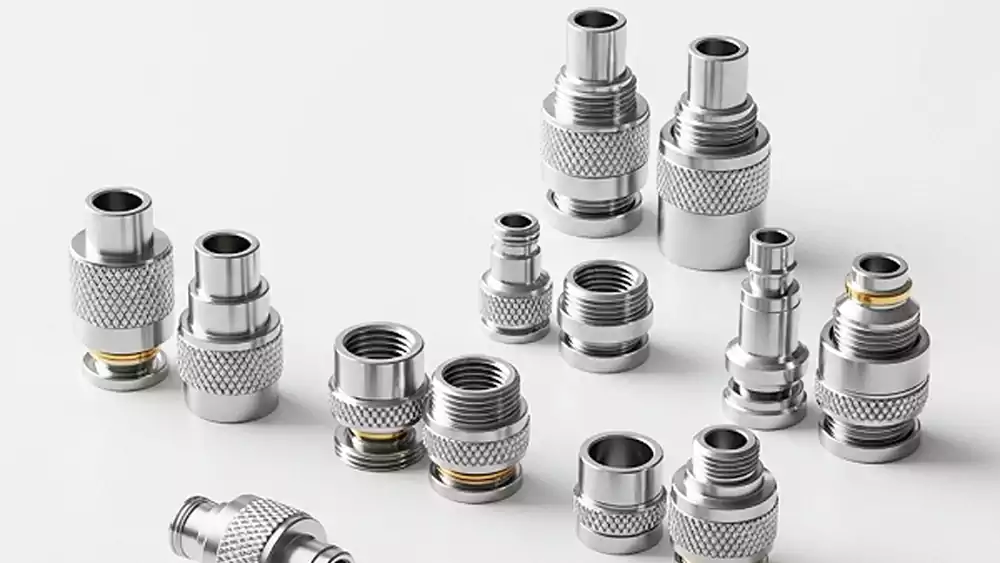

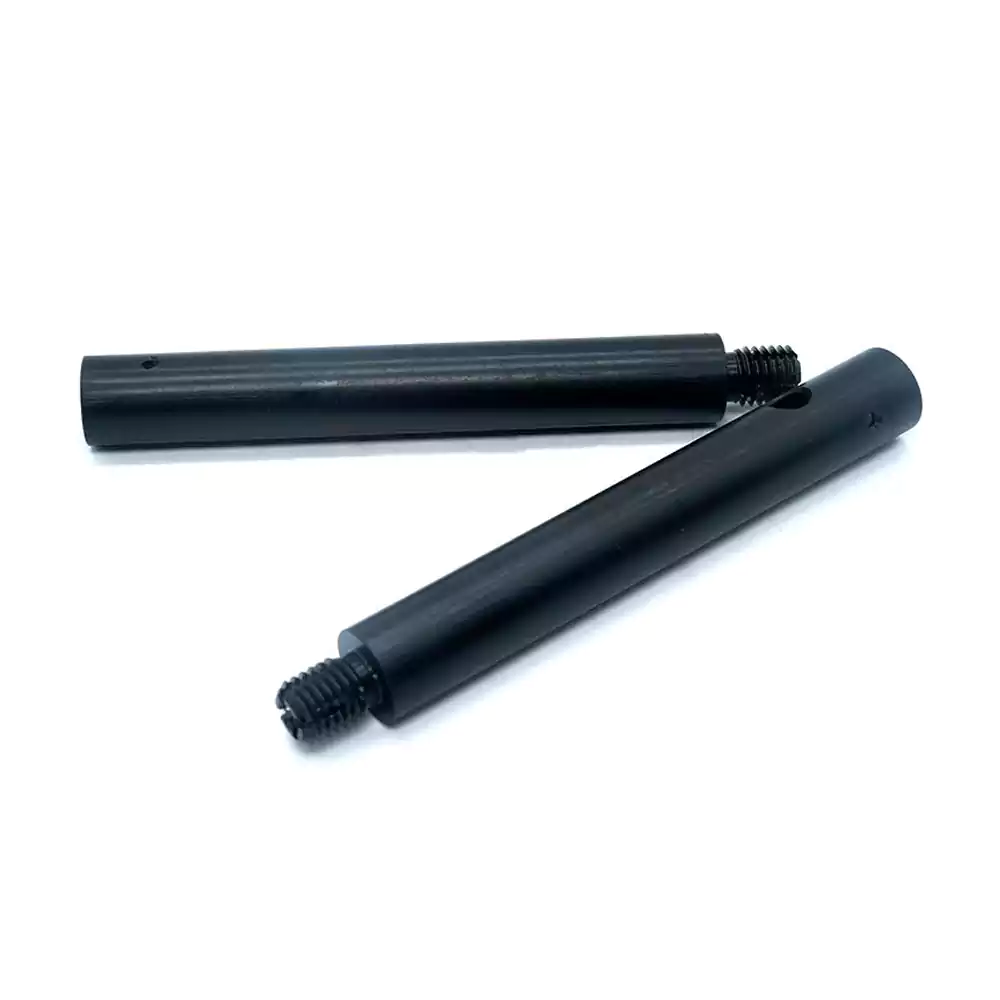

- Coupling Components
- Quick-Connect Spindles
- ⚡ Custom & Special Shafts
- Non-Standard / Custom Shapes (OEM/ODM)
- Built-Up Shafts (Welded / Assembled)

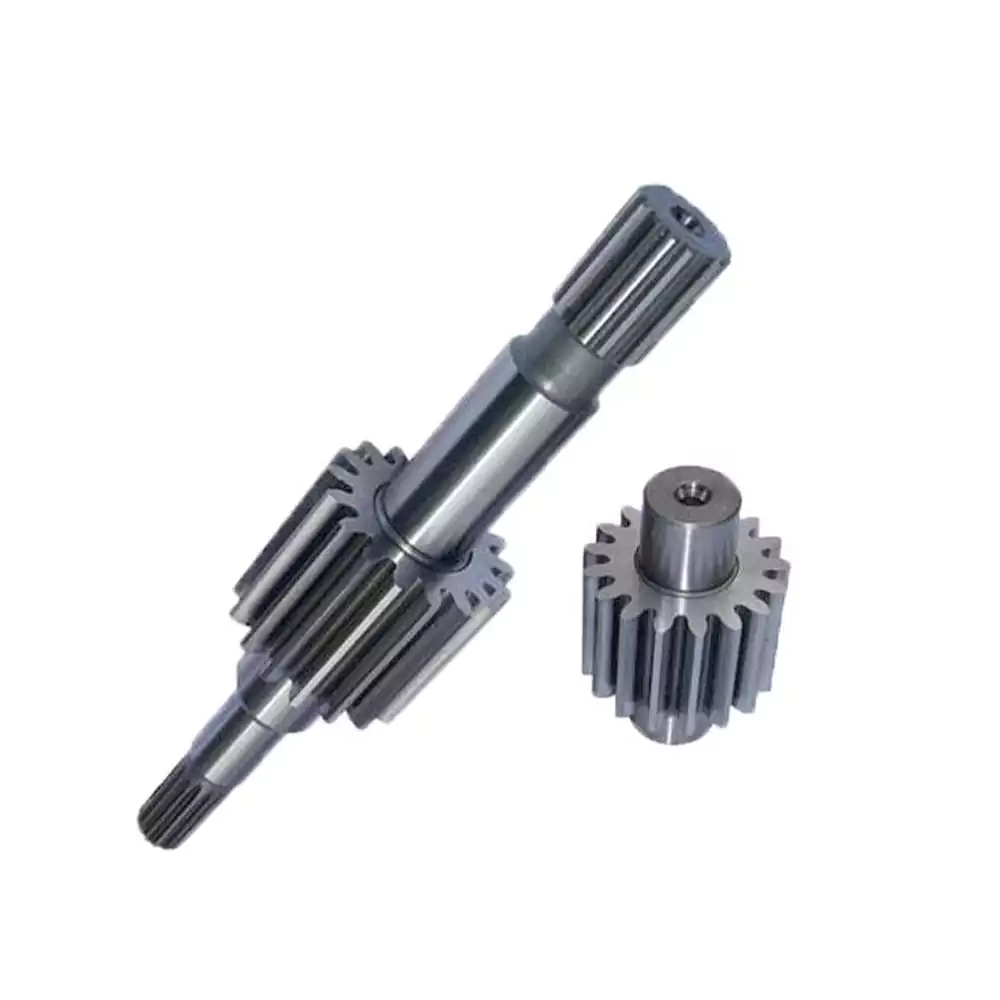

- Shafts with Gears / Keyways
- Slender Shafts (L/D ≥ 20)
- Ultra-Precision Shafts (±0.005mm)
Why Choose Us for Shafts & Rotational Parts?
We don’t just make parts — we engineer reliability into every fastener. Here’s what sets us apart.
Precision Investment Casting
Silica sol investment casting for shaft blanks with excellent dimensional stability. Ideal for splines, stepped profiles, and thin-wall tubular shafts — minimizing secondary operations.
- Concentricity: ≤0.05mm typical
- Max casting weight: 65 kg
- Min. wall thickness: 2.5 mm
Precision CNC Machining
DMG MORI and MAZAK machining centres for critical shaft features: bearing journals, threads, splines, keyways, and end faces — ensuring perfect assembly fit and interchangeability.
- Roundness: ≤0.002 mm
- Surface finish: Ra 0.2–0.8 μm
- 100% CMM inspection

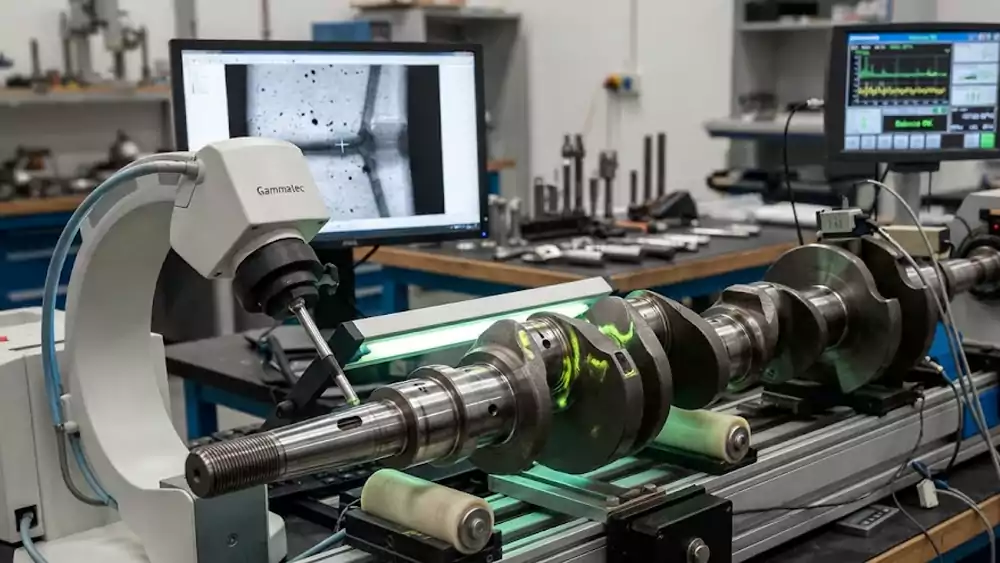

Shaft Quality Assurance
Rigorous inspection from raw material to finished shaft. Full NDT capability plus dynamic balancing for high-speed rotating assemblies — guaranteed reliability under load.
- 100% X-Ray inspection
- Fluorescent penetrant testing
- Dynamic balancing (G1.0 grade)
ISO 9001 & IATF 16949 Certified · Full In-House Quality Control
Common Application Industries
How Can We Enhancing Part & System Performance?
Design-for-manufacturability analysis to reduce stress risers and optimize overall cost.
Precision grinding and electropolishing for superior fatigue life and wear resistance.
Professional balancing and correction for smooth high-speed operation with reduced noise and vibration.
Technical Specifications & Quality Control
Parameter | Specification | Notes |
Size Range | Φ0.5mm – Φ300mm, up to 2000mm length | Custom sizes supported |
Tolerance Class | Standard IT7-IT8, Precision IT5-IT6 | Verified by CMM |
Quality Standards | ISO 9001 / IATF 16949 | Full material traceability |
Surface Roughness | Ra 0.2 – Ra 3.2 μm | Precision grinding & electropolishing available |
Exhaust Parts · Manufacturing Showcase
Examples of typical exhaust components with process, material, and part details.
Factory & Manufacturing Facilities
Our Collaboration Process
Client Testimonials
What engineers and procurement leaders say about our powertrain parts
“Allied Metal’s integrated casting+machining solution eliminated the hassle of managing multiple suppliers. Shaft quality is consistent, and delivery has been reliable.”
Senior Procurement Manager · Industrial Automation
“As a mid-sized motor manufacturer without casting capabilities, Allied provided precision rotor shaft blanks and complete finishing — a true one-stop service.”
Director of Mechanical Engineering · New Energy & Drives
“Excellent dimensional consistency across batches. In-process inspection and CMM reports gave us full confidence. Competitive cost and seamless logistics.”
VP of Operations · Energy & Industrial Equipment
FAQs
Do you offer one-stop shaft manufacturing from casting to finished part?
Yes. We provide a complete closed-loop service including investment casting, heat treatment, precision machining, and surface finishing — one supplier, full responsibility.
What is the minimum order quantity (MOQ)?
We have no MOQ restrictions. We support everything from single prototype samples to high-volume production runs.
How do you ensure combined casting + machining accuracy?
Casting tolerances meet VDG D1-D2 / ISO DCTG4-6, and machining precision is held to ±0.005mm. We use imported CMM and optical inspection for full dimensional control.
Do you provide material substitution or upgrade recommendations?
Absolutely. Our materials engineers recommend the most cost-effective and reliable material grades based on your specific load, temperature, and media conditions.
What types of customers do you primarily serve?
We focus on brand owners and SMEs that lack full in-house production and rely on outsourcing for mold development and custom part manufacturing.
Need Custom Shafts or Rotational Parts?
Free technical consultation · Fast quoting · DFM analysis · Preferred for brands & SMEs
B2B engineering partnerships · Low‑volume flexible start · Seamless transition from prototyping to production
