Investment casting and sand casting are widely used metal forming techniques, each suited to different production needs.
This article compares their processes, material suitability, cost, and applications to help you choose the best option.

What is Investment Casting?

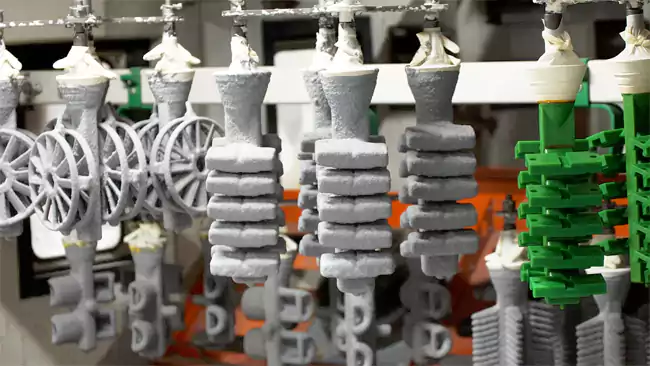

Also known as lost wax casting, investment casting is a high-precision process ideal for producing small, intricate parts. It involves creating a wax mold, coating it with ceramic, and pouring metal into the hardened shell.

What is Sand Casting?

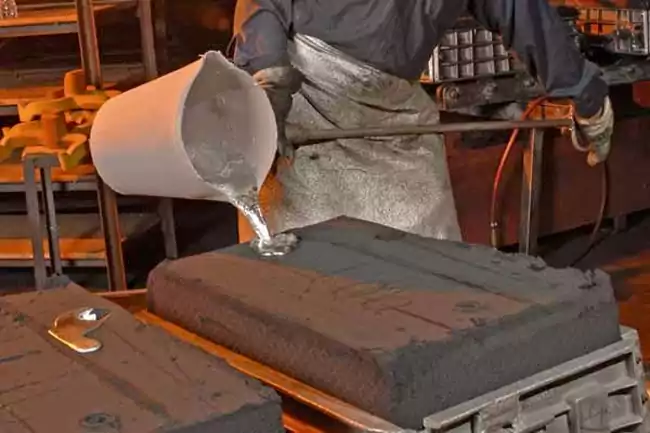

Sand casting is a traditional method where molten metal is poured into sand molds. It is well-suited for large parts and widely used in automotive and machinery manufacturing due to its lower cost and easy mold modifications.

2. Comparison of casting processes

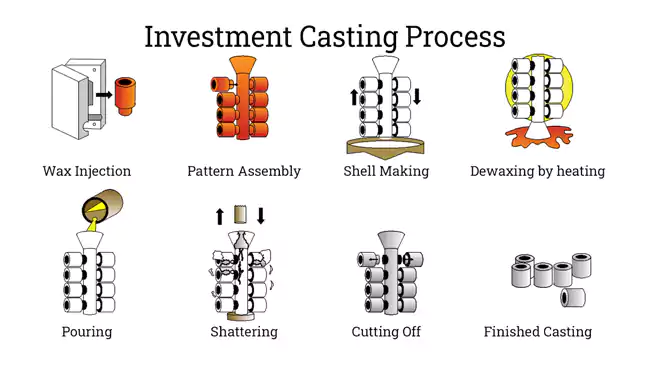

Investment casting process:

Wax mold making → ceramic shell layer → metal pouring → ceramic shell removal → product processing

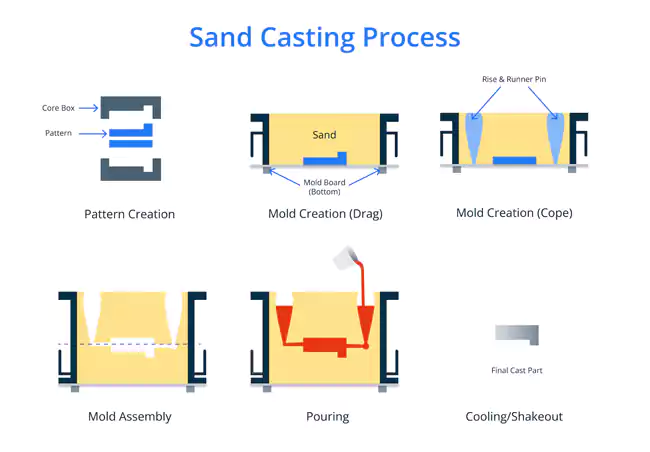

Sand casting process:

Molding → Closing → Metal pouring → Sand mold removal → Cleaning

The parts produced by investment casting have smooth surface and high precision, but the cycle is longer. Sand casting, on the other hand, is more efficient, but the finished product may require additional processing to achieve the required accuracy.

3. Material Suitability & Casting Quality

Following is a comparison of some commonly used casting materials.

Feature	Investment Casting	Sand Casting
Materials	Stainless steel, alloy steel, aluminum alloy	Cast iron, aluminum, copper alloys
Precision	±0.1mm, smooth surface	Larger tolerances, rougher finish
Complexity	Suitable for intricate, detailed parts	Best for larger, simpler parts
Post-Processing	Minimal machining needed	Often requires additional CNC machining

Investment casting is ideal for high-precision, complex parts, while sand casting is cost-effective for larger, lower-precision components.

4. Production cost and efficiency analysis

Investment Casting:

Higher upfront tooling costs but lower post-processing expenses, making it suitable for low-to-medium production runs with tight tolerances.

Sand Casting:

Lower mold costs and higher production efficiency, making it ideal for large-scale manufacturing, though additional machining may be needed.

If your product requires high precision, investment casting is a better choice; if you pursue low cost and large batch, sand casting is more advantageous.

Contact us for more details and a quote for investment casting!

5. Applicable industries and typical application scenarios

Investment casting excels in manufacturing high-precision, complex components. Here are some real-world applications:

Aerospace

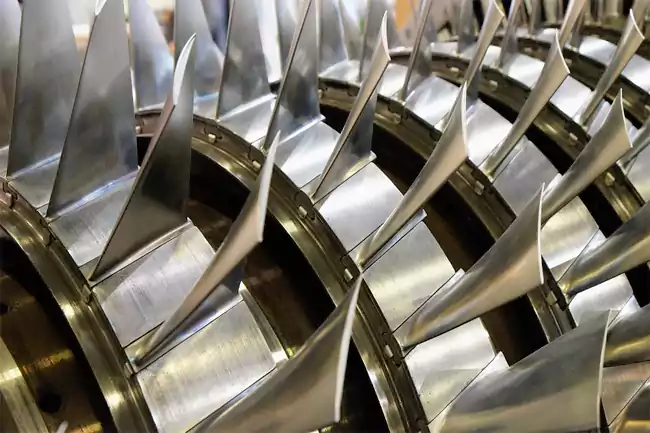

Gas turbine blades in aviation engines are often made using investment casting. This process enables aerospace manufacturers to produce blades with intricate geometries, superior heat resistance, and fatigue strength, enhancing engine efficiency and safety.

Medical Devices

Used for hip and knee implants, as well as precision surgical instruments, investment casting ensures dimensional stability and excellent surface quality, meeting strict biocompatibility and durability standards.

Precision Mechanical Parts

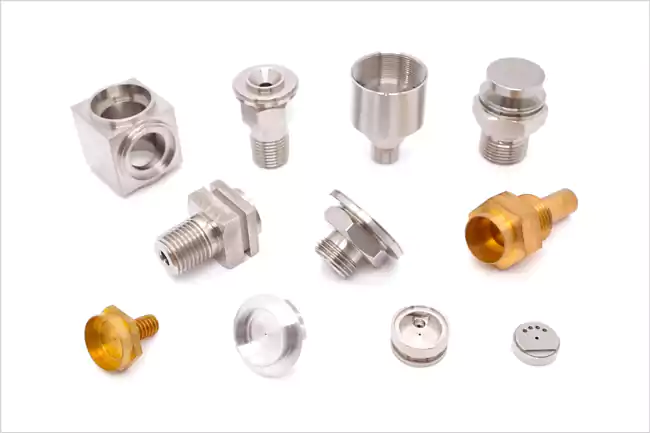

Sensor housings, micro gears, and other intricate components benefit from investment casting, achieving tight tolerances and fine details essential for precision equipment.

Sand casting, ideal for high-volume and large-part production, is commonly used in:

Automotive Manufacturing

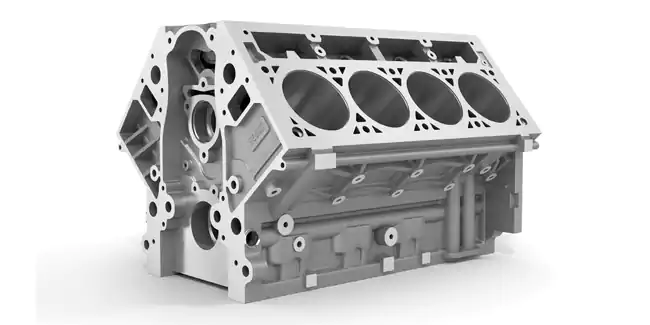

Engine blocks, gearbox housings, and other key components are efficiently mass-produced using sand casting, reducing costs while ensuring durability and strength.

Construction and Heavy Machinery

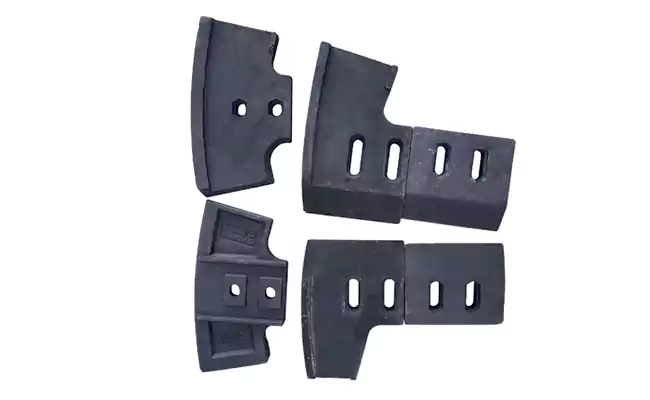

Large pump bodies, valves, and concrete mixer parts are frequently made using sand casting. For instance, mining machinery components benefit from its wear resistance and cost-effectiveness.

Additionally, CNC machining can further refine parts from both processes, enhancing dimensional accuracy and surface quality to meet high-end application demands.

6. How to choose the most suitable casting process?

Below is a table showing a comparison of two casting processes to help you choose the most suitable casting process from a number of key factors:

Criteria	Investment Casting	Sand Casting
Product Complexity	Ideal for complex, high-precision parts.	Best for simple, large parts.
Production Volume	Suitable for small batches, but mold-making takes time.	Cost-effective for large-scale production.
Cost	Higher mold cost but less machining needed.	Lower mold cost but may require extra machining.
Quality & Precision	High precision and smooth surface finish.	Lower precision with a rougher surface.
Equipment & Skills	Requires advanced equipment and expertise.	Uses common equipment, easier to implement.
Environmental Impact	Less waste, but strict process control is needed.	More waste, requiring extra environmental measures.
Supplier Support	Specialized manufacturing suppliers are needed to ensure quality.	Many suppliers available, but quality varies.

Conclusion

If you need high-precision, low-volume parts for industries such as aerospace and medical, investment casting is recommended. If you are more concerned about cost and have a larger product size, sand casting may be a better option. Combined with CNC machining and post-processing, it can also further optimize the quality of parts and enhance market competitiveness.

I hope this article can help you understand the advantages and disadvantages of the two casting processes, so as to make the most appropriate choice! If you are looking for a professional casting processing service provider, welcome to contact us for more industry information.
