Choosing Die Casting Materials: How Do You Make the Smartest Pick?

Selecting the wrong die casting material can doom your project. Parts might fail, costs can soar, or manufacturing could become a nightmare. How do you avoid these traps?

Choosing the right die casting material involves balancing mechanical properties, application demands, and cost. Key alloys include aluminum, zinc, and magnesium, each offering unique advantages for specific uses.

In my years at Allied Metal, providing CNC machining, 3D printing, and rapid prototyping services, I've seen how crucial material selection is, no matter the manufacturing process. For high-volume production of complex metal parts, die casting is often a go-to method. But the success of a die-cast part heavily relies on picking the right metal from the get-go. My insight is that choosing the right die casting material is crucial for balancing performance, cost, and manufacturability. It's not just about how strong the material is, but also how well it casts, how it behaves in its intended environment, and whether it fits the budget. For engineers like David, who are designing intricate components for industrial systems, understanding both alloy properties and end-use requirements leads to smarter, more efficient product decisions. Let's delve into the factors that guide this important choice.

---

What Are the Most Popular Metals for Die Casting?

When you think about die casting, which metals typically come to mind? Knowing the common players is the first step to selecting the best option for your project.

The most popular metals for die casting are aluminum alloys, zinc alloys, and magnesium alloys, prized for their excellent castability, diverse properties, and cost-effectiveness for various applications.

Diving Deeper into Common Die Casting Alloys

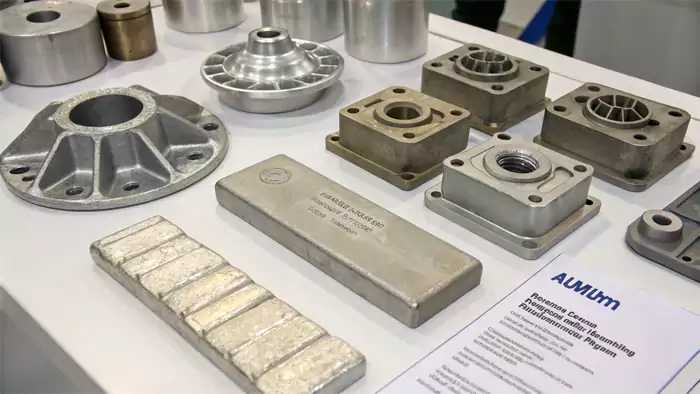

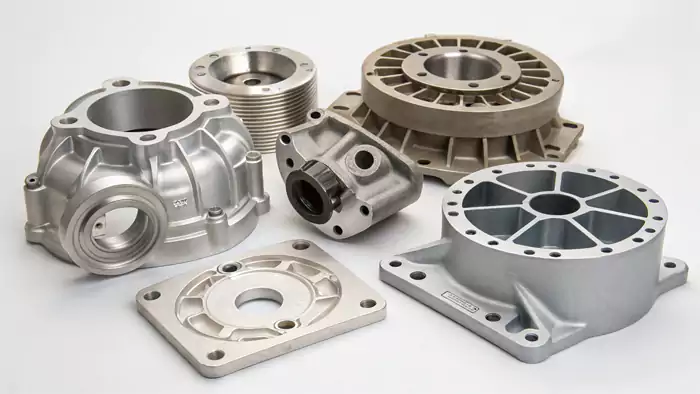

While many metals can be cast, only a select group are predominantly used in die casting due to their specific characteristics that suit this high-pressure, high-volume process. When an engineer like David is considering die casting, these are the materials they'll most likely encounter:

1. Aluminum Alloys:

   • These are probably the most widely used die casting materials. They offer a great combination of light weight, good strength-to-weight ratio, excellent corrosion resistance, high thermal and electrical conductivity, and good mechanical properties even at elevated temperatures. Common alloys include A380, A360, and A413. From a machining perspective, if secondary operations are needed, aluminum is generally quite workable.

2. Zinc Alloys:

   • Zinc alloys, particularly the ZAMAK (or MAZAK) family (e.g., Zamak 3, Zamak 5), are incredibly popular for die casting. They are known for their excellent castability, allowing for very thin walls and intricate details. They offer good strength and hardness, exceptional dimensional accuracy and stability, and are easily plated or finished. Zinc also has a lower melting point than aluminum, which means longer die life.

3. Magnesium Alloys:

   • Magnesium is the lightest of the commonly die-cast structural metals, making it ideal for applications where weight reduction is paramount. It offers an excellent strength-to-weight ratio and good castability. Common alloys include AZ91D. Magnesium parts often require protective coatings due to lower corrosion resistance compared to aluminum or zinc.

4. Copper Alloys (Brass):

   • While less common due to their higher melting points (which leads to shorter die life and higher costs), copper alloys like brass are sometimes die-cast. They offer high strength, excellent corrosion resistance (especially in marine environments), good wear resistance, and high electrical conductivity.

These four groups represent the bulk of materials used in die casting. Each has its own set of strengths that make it suitable for particular applications, something we'll explore further.

---

What Are the Key Properties of Die Casting Alloys to Consider?

Beyond just knowing the popular metals, what specific characteristics should you evaluate? Understanding key alloy properties is crucial for matching a material to your part's demands.

Key properties include mechanical strength (tensile, yield), hardness, ductility, corrosion resistance, thermal/electrical conductivity, density (weight), melting point, castability, and overall cost-effectiveness for the application.

Diving Deeper into Material Characteristics

When selecting a die casting alloy, engineers like David need to scrutinize a range of properties to ensure the chosen material will perform as expected. These properties often involve trade-offs¹. For instance, a very strong material might be less ductile or harder to cast.

Here are some of the most important properties I always consider:

• Mechanical Properties:
  • Tensile Strength & Yield Strength: The ability of the material to withstand pulling forces without deforming permanently (yield) or fracturing (tensile). Crucial for load-bearing components.
  • Hardness: Resistance to indentation, scratching, and wear. Important for parts experiencing friction or abrasion.
  • Ductility/Toughness: Ductility is the ability to deform under tensile stress before fracturing (measured by elongation). Toughness is the ability to absorb energy and deform before fracturing, important for impact resistance.
• Physical Properties:
  • Corrosion Resistance: Ability to withstand degradation from environmental factors (moisture, chemicals).
  • Thermal Conductivity: How well the material conducts heat. Important for heat sinks or parts in thermal cycling.
  • Electrical Conductivity: How well the material conducts electricity. Critical for electrical components.
  • Density (Weight): Mass per unit volume. Magnesium and aluminum are prized for their low density.
• Manufacturing & Cost Properties:
  • Melting Point/Casting Temperature: Affects energy costs and die life (lower melting points generally mean longer die life).
  • Castability/Fluidity²: How easily the molten metal flows into and fills the die cavity, allowing for complex shapes and thin walls. Zinc alloys excel here.
  • Machinability: Ease with which the material can be machined if secondary operations are needed.
  • Cost: This includes raw material cost, processing cost, and tooling life expectancy. This is always a big factor in the overall decision, as highlighted in my insights about balancing performance, cost, and manufacturability.

Understanding these properties helps in creating a shortlist of suitable alloys for a specific die casting project.

---

What Factors Influence Die Casting Material Selection?

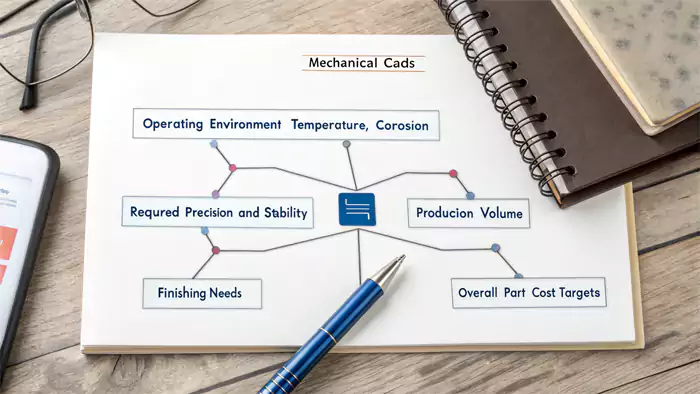

Choosing a die casting material isn't arbitrary. What specific project requirements and operational conditions steer you towards one alloy over another for optimal results?

Material selection is influenced by mechanical loads, the operating environment (temperature, corrosion), required precision and stability, production volume, finishing needs, and overall part cost targets.

Diving Deeper into Selection Drivers

The process of selecting the right die casting material is a balancing act, as my insight mentions. It's about matching the alloy's capabilities with the demands of the application and the realities of production. For an engineer like David, these factors are critical:

1. Mechanical Requirements:

   • What loads will the part experience? Will it be subject to tension, compression, impact, or fatigue? This dictates the required strength, toughness, and hardness. For example, a structural component in an industrial robot arm needs high strength and rigidity.

2. Operating Environment:

   • Will the part be exposed to high or low temperatures? Will it encounter moisture, saltwater, chemicals, or other corrosive agents? This determines the need for corrosion resistance and performance at temperature. An outdoor enclosure needs better corrosion resistance than an internal component.

3. Dimensional Accuracy and Stability:

   • How tight are the tolerances? Does the part need to maintain its dimensions over a wide temperature range or under load? Alloys with good dimensional stability and low thermal expansion might be preferred. Zinc alloys are known for excellent as-cast accuracy.

4. Production Volume and Tooling Life:

   • High production volumes generally favor die casting. Alloys with lower melting points (like zinc and magnesium) are gentler on the dies, leading to longer tool life and potentially lower tooling costs per part over very high volumes.

5. Finishing Requirements:

   • Does the part need to be plated, painted, anodized, or receive other surface treatments? Some alloys are easier to finish than others. Zinc is excellent for plating, while aluminum can be anodized.

6. Part Complexity and Wall Thickness:

   • Highly complex parts with thin walls require alloys with excellent fluidity (castability). Zinc and magnesium often have an edge here.

7. Overall Part Cost:

   • This includes the raw material cost, the cost of die casting (which can be affected by cycle times and scrap rates), tooling costs (amortized over the production run), and any secondary operation costs (machining, finishing). It’s about achieving the target performance at an acceptable total cost. This ties back to David's need for cost-effective services.

By carefully evaluating these factors, a well-informed decision can be made, leading to a successful die-cast product.

---

How Do You Determine the Ideal Metal for Your Product?

With various alloys and factors, what's a practical approach to pinpointing the best material? A systematic process helps ensure all critical aspects are considered for an optimal choice.

Define end-use requirements, identify necessary mechanical and physical properties, consider environmental exposure, assess manufacturing complexity and volume, and then balance performance against the overall budget to select the ideal metal.

Diving Deeper into the Selection Process

Determining the ideal metal for a die-cast product involves a methodical approach. As my insight suggests, understanding both alloy properties and end-use requirements is key. Here’s a process that I find effective, similar to how an experienced engineer like David might tackle it:

1. Clearly Define End-Use Application and Critical Performance Criteria:

   • What will the part do? What are the absolute must-have performance characteristics (e.g., must withstand X load, must not corrode in Y environment)? What are the desirable but not critical properties?
   • Example: A housing for an outdoor sensor needs excellent corrosion resistance and moderate strength, while an internal gear might need high wear resistance and strength.

2. Identify Necessary Mechanical and Physical Properties:

   • Translate the performance criteria into specific material property targets: required tensile strength, hardness, impact strength, operating temperature range, conductivity, density limits, etc.

3. Consider Environmental Exposure:

   • Detail the conditions the part will face: temperature fluctuations, humidity, chemical exposure, UV radiation. This will heavily influence choices regarding corrosion resistance and material stability.

4. Evaluate Manufacturing Complexity, Volume, and Finishing:

   • How complex is the part geometry? Are thin walls required (influencing fluidity needs)? What is the expected production volume (impacting tooling life and per-part cost)? What finishing (plating, painting) is needed?

5. Create a Shortlist and Compare Trade-offs:

   • Based on the above, shortlist potential alloys. Then, compare them systematically. A decision matrix can be helpful here:

   Property/Factor	Alloy X (e.g., A380 Al)	Alloy Y (e.g., Zamak 3 Zn)	Alloy Z (e.g., AZ91D Mg)
   Strength	Good	Moderate	Good (high Str/Wt)
   Weight (Density)	Low	High	Very Low
   Corrosion Resistance	Good	Fair (needs plating)	Fair (needs coating)
   Castability (Thin Walls)	Fair	Excellent	Good
   Tooling Life	Moderate	Excellent	Good
   Material Cost	Moderate	Lower	Higher
   Finishing Ease	Good (Anodize, Paint)	Excellent (Plate, Paint)	Fair (Paint, Coat)

6. Balance Performance with Budget and Consult Experts:

   • Finally, weigh the technical suitability against the overall cost implications. Sometimes, a slightly lower-performing but significantly cheaper material might be adequate. Don't hesitate to consult with material suppliers or experienced die casting foundries. Their input can be invaluable.

This structured approach helps ensure that all critical aspects are considered, leading to a smarter material choice.

---

What Are Some Common Applications of Die-Cast Metals in Industry?

Where do we typically see these die-cast metals in action? Knowing common applications helps illustrate the strengths and typical uses of each major alloy family.

Aluminum is used in automotive and electronics; zinc in hardware and intricate parts; magnesium for lightweight applications like laptop cases; and copper alloys in plumbing and electrical components.

Diving Deeper into Industry Use Cases

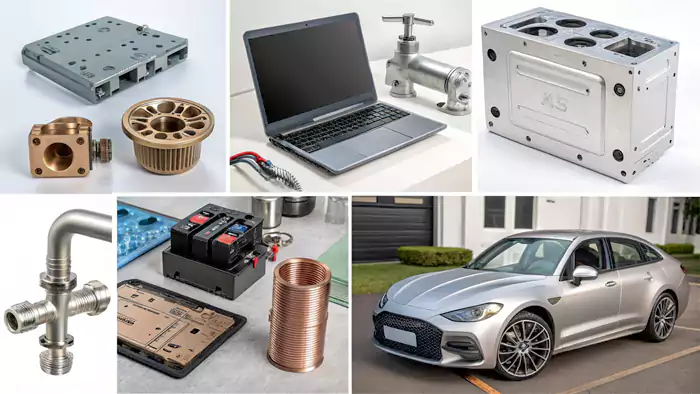

Die-cast metals are ubiquitous in many industries due to the process's ability to produce complex, precise parts at high volumes. Here’s a look at where specific alloys shine:

• Aluminum Alloys (e.g., A380, A360):

  • Automotive: This is a huge area. Engine blocks, transmission housings, oil pans, pistons, cylinder heads, brackets, and structural components. Their light weight and good strength are key.
  • Electronics: Housings for computers, communication equipment, heat sinks for electronic components due to good thermal conductivity.
  • Power Tools: Housings for drills, saws, and other handheld tools, offering durability and light weight.
  • Appliances: Components for washing machines, refrigerators, and kitchen appliances.
  • Lighting: Housings for streetlights and industrial lighting fixtures.

• Zinc Alloys (e.g., Zamak 3, 5, 7):

  • Hardware: Door handles, window cranks, cabinet hardware, locks, and faucet bodies due to their excellent finishing capabilities (plating) and intricate detail.
  • Automotive: Interior components, decorative trim, small mechanical parts, and sensor housings.
  • Electronics: Connectors, small enclosures, and components requiring good EMI/RFI shielding.
  • Fashion & Toys: Buckles, zippers, and detailed toy components. Their ability to capture fine detail is a major plus.

• Magnesium Alloys (e.g., AZ91D, AM60B):

  • Automotive: Steering wheel cores, seat frames, instrument panels, and transfer cases where weight reduction is critical for fuel efficiency or performance.
  • Electronics: Laptop cases, cell phone bodies, camera housings, and portable device components, offering the lightest weight among common structural metals.
  • Power Tools & Sporting Goods: Components where minimizing weight enhances usability.

• Copper Alloys (Brass):

  • Plumbing: Faucets, valves, and pipe fittings due to excellent corrosion resistance and good strength.
  • Electrical Components: Connectors, terminals, and switchgear parts requiring high electrical conductivity and strength.
  • Marine Hardware: Components exposed to saltwater environments.

For an engineer like David, seeing these applications helps connect the material properties with real-world performance and guides the selection for his own industrial automation components, which might include custom enclosures, brackets, or internal mechanical parts.

---

What Are the Advantages of Die Casting Over Other Manufacturing Methods?

Why choose die casting when other methods like machining, forging, or stamping exist? Understanding its unique benefits highlights why it's preferred for certain types of parts.

Die casting offers high production rates, complex part geometries with tight tolerances, excellent surface finish, reduced secondary machining, and cost-effectiveness for high-volume metal part production.

Diving Deeper into Die Casting's Strengths

Die casting is a highly efficient manufacturing process for producing metal parts, and it offers several distinct advantages over other methods, especially when high volumes are involved. This is why engineers like David often consider it for components in their systems.

1. High Production Rates: Die casting is an automated process capable of producing thousands, or even hundreds of thousands, of parts very quickly. Cycle times are typically measured in seconds rather than minutes or hours.
2. Complex Geometries and Intricate Details: The high-pressure injection of molten metal allows for the creation of very complex shapes, thin walls, and fine details that would be difficult or expensive to achieve with other methods like machining from solid stock.
3. Excellent Dimensional Accuracy and Consistency: Die casting can produce parts with very tight tolerances, often requiring minimal or no secondary machining to achieve the final desired dimensions. This consistency is maintained from part to part.
4. Good Surface Finish: Parts come out of the die with a smooth surface finish, which can reduce the need for subsequent polishing or finishing operations, depending on the application and alloy.
5. Reduced Secondary Machining (Net-Shape or Near-Net-Shape): Features like holes, threads (external, and sometimes internal with special core pulls), and bosses can often be cast directly into the part, significantly minimizing post-casting machining. This saves time and cost.
6. Strength and Durability: Die-cast parts are metallic and offer good strength, stiffness, and durability compared to, say, plastic injection molded parts, though not always as strong as forged parts.
7. Consolidation of Parts: A single die casting can often replace an assembly of multiple parts made by other methods, reducing assembly time and cost.
8. Cost-Effective for High Volumes: While the initial tooling (die) cost can be significant, the high production speed and low labor input make the per-part cost very competitive for large production runs.

However, it's also important to note limitations like higher initial tooling costs (making it less suitable for very low volumes), and material choices being limited to non-ferrous alloys primarily. My company, Allied Metal, often complements die casting operations by providing precision CNC machining for features that cannot be cast-in or for finishing die-cast parts to even tighter tolerances.

---

How Do You Select a Reliable Die Casting Foundry: Key Considerations?

Choosing the right material is half the battle; finding a capable foundry is the other. What should you look for to ensure your die-cast parts are made to specification?

Look for foundries with experience in your chosen alloy, robust quality control (ISO certification), DFM support, good tooling capabilities, secondary processing options, and clear communication practices.

Diving Deeper into Choosing a Manufacturing Partner

Once an engineer like David has determined that die casting is the right process and has a good idea of the material, selecting a reliable die casting foundry or manufacturing partner is the next crucial step. The quality of the final part heavily depends on the foundry's expertise and capabilities. Even though my company, Allied Metal, focuses on CNC machining, 3D printing, and rapid prototyping, I understand the importance of vetting any manufacturing supplier.

Here are key considerations:

1. Experience and Specialization:

   • Does the foundry have proven experience with the specific alloy you intend to use (e.g., aluminum, zinc, magnesium)?
   • Do they have a track record in your industry or with similar types of parts?

2. Quality Control Systems:

   • Are they ISO certified (e.g., ISO 9001)? What are their quality assurance procedures?
   • What inspection equipment do they have (CMMs, X-ray, spectrometers)? Can they provide material certifications and inspection reports? David’s need for consistent part quality is paramount here.

3. Design for Manufacturability (DFM) Support:

   • A good foundry will offer DFM feedback to help optimize your part design for the die casting process. This can improve part quality, reduce costs, and prevent potential manufacturing issues. This is a value-add David would appreciate.

4. Tooling (Die) Design and Build Capabilities:

   • Do they design and build dies in-house, or do they outsource? In-house capabilities often mean better control and faster turnaround for tool modifications or repairs.
   • What is their approach to die maintenance for ensuring long-term quality?

5. Range of Die Casting Machines:

   • Do they have machines appropriate for the size and complexity of your part and your production volume requirements?

6. Secondary Processing Capabilities:

   • Can they provide necessary secondary operations like trimming, deburring, CNC machining (for critical features), surface finishing (plating, painting, powder coating), and assembly? A one-stop-shop can simplify logistics.

7. Communication and Project Management:

   • Are they responsive and easy to communicate with? Do they provide clear project timelines and regular updates? This is vital for meeting tight deadlines.

8. Cost, Lead Time, and Delivery:

   • Obtain detailed quotes, but don't choose based on price alone. Consider the overall value, quality, and reliability.
   • What are their typical lead times for tooling and production? Can they meet your delivery schedule?

Finding a foundry that acts as a true partner, offering expertise and transparency, is key to a successful die casting project.

---

Conclusion

Choosing the right die casting material requires balancing alloy properties, application needs, and costs. Informed decisions ensure high-quality, cost-effective parts for your specific manufacturing goals.

---
