A Comprehensive Guide to Aluminum Casting
- Tony, November 18, 2024
1. what is aluminum casting?
Aluminum casting is a process that uses aluminum alloy or pure aluminum to cast aluminum parts by melting the aluminum, pouring it into a mold, and cooling and solidifying it to form the desired shape. This process allows for the manufacture of complex shaped parts with high productivity.
2. Aluminum Casting Production Process
The production process typically involves the following steps:

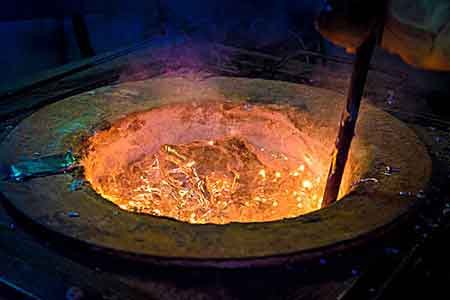

First, a suitable aluminum material (e.g., aluminum alloy or pure aluminum) is selected and heated to the melting point so that it becomes liquid.
According to the design of the casting, a casting mold is made. The material and shape of the mold determine the accuracy and surface quality of the casting.
The molten aluminum is poured into the mold to fill the mold cavity, ensuring that the liquid aluminum completely covers the mold.
The liquid aluminum will solidify when cooled to form an aluminum casting of the desired shape.
After cooling, the aluminum casting is removed from the mold for surface cleaning and further processing.
3. Common Aluminum Casting Processes
There are several processes for aluminum casting, each applicable to different production needs. Below, we will introduce several common casting processes.
Sand Casting
Sand casting is an casting process that uses sand as the mold material. Sand casting is relatively low cost and suitable for small batch production.
- Common aluminum models: such as A356, A380, ADC12 and other aluminum alloys.
- Typical applications: suitable for automotive parts, mechanical structure parts and home appliance shells, etc.
Investment casting
Investment casting (also known as precision casting) creates precise aluminum castings by pouring a wax mold with aluminum liquid.
- Common aluminum models: e.g. A319, A356, etc.
- Typical applications: Commonly used in the manufacture of complex shapes, high precision aluminum castings, such as aerospace parts, automotive engine parts.
Die Casting
Die casting is the process of injecting molten aluminum liquid under high pressure into a precision metal mold to create aluminum castings with high precision and smooth surfaces.
- Common aluminum materials: e.g., A380, A360, etc.
- Typical applications: widely used in electronic products, automobile parts, home appliances and other fields.

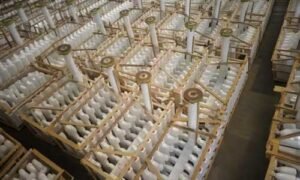

Vanishing Mold Casting
Vanishing mold casting is a process that uses dissolved molds to make aluminum parts. The mold is dissolved during the casting process, and the aluminum liquid fills the cavity and cools to form.
- Common aluminum materials: e.g. A319, A356, etc.
- Typical applications: Suitable for small batch, complex shapes and high precision aluminum castings, such as aerospace parts, precision mechanical parts, etc.
4. Precautions in aluminum casting production
During the casting process, there are some key factors that require special attention to ensure the quality of castings:
Temperature control
The control of the aluminum melting temperature is critical. Too high or too low a temperature will affect the quality of the aluminum casting.
Mold design
The design of the mold should take into account the fluidity of the aluminum liquid, the cooling rate and the precision of the castings.
Alloy composition
According to the use environment and performance requirements of aluminum castings, select the appropriate aluminum alloy material.
Post-treatment
Aluminum parts after casting may have burrs and excess aluminum, which need to be cleaned or undergo other surface treatment.
5. How to choose the right aluminum casting process
Choosing the right aluminum casting process is the key to ensuring the quality and cost-effectiveness of castings. Here are some points to consider when selecting an casting process to help you make an informed decision:
1. Complexity and precision requirements of aluminum casting
Complex shape and high precision requirement:
For aluminum castings with complex shapes and high accuracy requirements, investment casting or disappearance mold casting are better choices. These processes can provide meticulous detail and high accuracy for complex designs and strict functional requirements.
Simple shapes with low accuracy requirements:
Sand casting or die casting are more economical choices for castings with simple shapes and low accuracy requirements. These processes are suitable for high volume production and are less costly.
2. Production lot sizes
Mass production
Die casting process is suitable for high volume production. Although the initial investment in molds is high, the unit cost will decrease as the production volume increases, making it ideal for mass production.
Small batch or customized needs
For small quantities or customized needs, sand casting and investment casting are more suitable. These processes have lower mold costs and are suitable for flexible small batch production.
3. Aluminum Alloy Selection and Performance Requirements
Aluminum Alloy Selection
Aluminum alloy materials are selected according to the performance requirements of the aluminum casting. For example, if the casting requires high strength or corrosion resistance, aluminum alloys such as A356 or A380 can be selected, which are more costly but satisfy special needs.
Melting point and fluidity
When choosing aluminum alloy, you need to consider the melting point and fluidity of the aluminum liquid to ensure that it can fill the mold smoothly and avoid bubbles or defects.
4. Mold Costs and Processing Costs
Mold design and manufacturing
Processes such as die casting require complex metal molds. Although the initial investment is high, the molds have a long service life and are suitable for mass production.
Post-processing
Some casting processes, such as sand casting, may require more post-processing (e.g., cleaning, deburring, etc.), which can add extra costs and need to be considered in the budget.
5. Production cycle
Different casting processes have different production cycles. Die casting is faster and suitable for mass production with short lead times, while precision processes such as investment casting have longer lead times and are suitable for production with high precision requirements but longer lead times.
6. The advantages of aluminum casting
Aluminum castings are widely used because of their unique properties. The main advantages include:
- Lightweight: Aluminum is inherently lightweight, making it suitable for applications that require reduced weight, such as automotive and aerospace parts.
- High corrosion resistance: Aluminum has good corrosion resistance and is particularly suitable for applications in harsh environments.
- Good thermal and electrical conductivity: Aluminum castings are very effective in heat exchange and electrical applications.
- Ease of machining and forming: The aluminum casting process is capable of producing parts of complex shapes, and the material is easy to machine.
7. Surface treatment of common aluminum castings
Surface treatment of aluminum cast parts not only enhances the appearance, but also enhances the performance of the aluminum parts. Common surface treatment methods include:
Forms a protective film on the aluminum surface through an electrochemical reaction to enhance the hardness and corrosion resistance of the aluminum part, commonly used for exterior parts or applications requiring high durability.
Forms a coating on the surface of aluminum castings using spraying technology, providing both additional protection and improved appearance, suitable for decorative needs in different colors and effects.
A layer of metal, such as nickel or chromium, is plated on the surface of aluminum through an electrolytic process to enhance the corrosion resistance, abrasion resistance, and surface luster of the castings, which is suitable for occasions requiring high strength durability and aesthetics.
Forms a phosphate layer on the aluminum surface through a chemical reaction, increasing corrosion resistance and providing better adhesion for subsequent coatings.
Sandblasting the aluminum surface through high-speed sand blasting to remove surface impurities and create a uniform texture and matte effect, which is widely used for parts with high decorative and functional requirements.
These surface treatment methods can enhance the performance, appearance and durability of aluminum castings according to different needs and meet the different requirements of various industries.
8. Summary
Aluminum casting is an efficient manufacturing method for producing components with complex shapes and excellent performance. By selecting the appropriate process and optimizing production, you can achieve technically compliant and cost-effective results.
Understanding the common methods, along with their advantages and disadvantages, will help you make more informed decisions in your manufacturing.
